Subsea switch assembly comprising of square mounting plate 200 x 200 x 8mm thick, 316 stainless steel, with rotating switch bar (190 x 50 x 25mm), fitted with 2 permanent magnets. Subsea housing with proximity switch mounted behind the square mounting plate with relay changeover contacts rated at 3 amps at 24vDC, operated by proximity switch. Fitted with 1 x Subcon SCBH4MSS bulkhead connector for input power and 1 x CRE 3 pin female connector for output power. Includes 5 metre cable harness with CRE 3 pin female inline connector to mate with logger housing power input.
£1,520.22

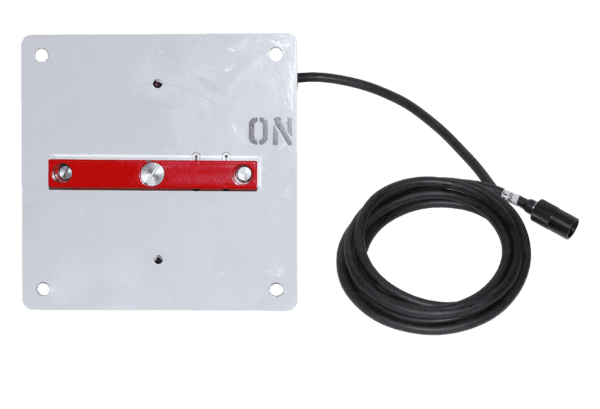

The SUBSEA-SW2-CRE subsea power switch is ideal for switching power on, and off, on a subsea sled, or any subsea operating system. The square mounting plate is made of 316 stainless steel, with a rotating switch bar containing two permanent magnets. Upon rotation to the horizontal “ON” position, one of the two magnets align with a reed switch sensor housed in a stainless steel enclosure behind the mounting plate, activating a secondary solid state relay. The solid state relay is suitable for switching 60vDC up to 3A. This can feed the power through the switch on your system.
The stainless steel housing incorporates two Subsea bulkhead connectors, that connects the power supply to the main system. The SUBSEA-SW2-CRE is provided with two 5m cable, one equipped with MCBH4M-SS for the power supply and the second with a 3-Pin CRE subsea connectors to provide power to the main system. The entire switch assembly and connectors are rated for operation in seawater depths up to 4000 meters.
The SUBSEA-SW2-CRE is virtually identical to the SUBSEA-SW2 subsea switch, but used a 3-Pin CRE subsea connector back to power the main system instead of the MCBH 5-Pin connection.
| Version | SUBSEA-SW2-CRE |
| Power Rating | 60vDC @ 3A |
| Mounting Plate | 200 x 200 x 8mm |
| Switch Bar | 190 x 50 x 25mm |
| Connectors | MCBH4M-SS and 3-Pin CRE bulkhead |
| Cable | 5M with Mating Bulkheads |
| Switch mechanism | Magnet operated reed switch with separate solid state relay |
| Depth Rating | 4000 metres |
If you require different specifications to the table above, please contact us to discuss your requirements. Subsea switches are made to order and customisation for your specific requirements would be available.
