Description

DESIGN FEATURES

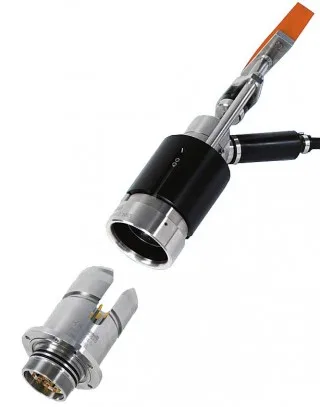

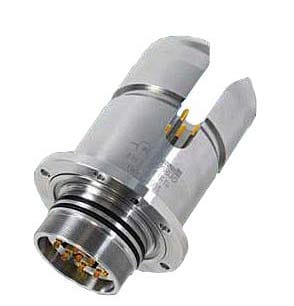

Receptacle

  • different flange designs are available (flange individual item)
  • longitudinally sealed contact design with 2 independent double o-ring-seals (4 o-rings in total)
  • gold-plated Peek isolated beryllium copper pin contact
  • shock and pressure resistant epoxy casting at the receptacle’s rear (epoxy casting tested in a real underwater explosion test to qualify it for marine application.)
  • Keyway versions (X, Y) available upon request.
  • Scoop proof.
  • serval holes to achieve pressure balance

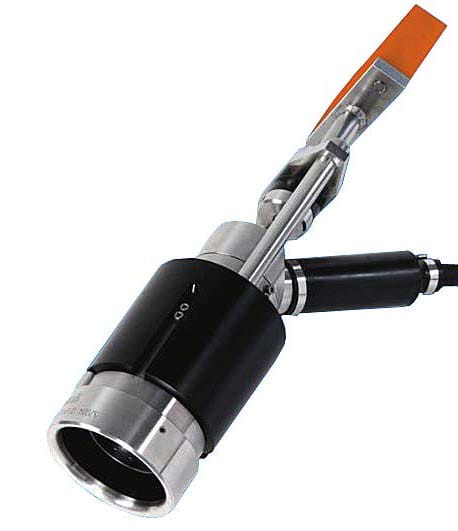

Plug

  • 3 locking clamps with an overall safety spring
  • Various handles (bars) available
  • Double membrane sealing system
  • Double o-ring-seals
  • 16 mm lang entry gasket for each contact
  • Special design shuttle pin to reduce compression set in the front gasket during storage
  • Shuttle pin made off PEEK
  • Lamella socket contact
  • Various endbell adapters available

ELECTRICAL DATA

CONTACT Ø 3 mm
Cable cross section: 2.5 mm²

Working voltage:  max. 700 V dc according to contact arrangement and insulation classification according to VDE 0110 part 1 table 4/3 Ι
Current per contact:
max. 20 A (at cable cross section 2 to 2.5 mm²)
max. 30 A (at cable cross section > 2.5 mm²)

Test voltage:  2500 V dc

Contact resistance: < 4 mΩ

Insulation resistance: > 1 G

TECHNICAL FEATURES

Operating temperature: -5°C up to +40°C
Storage temperature:  -18°C up to +50°C
Special orientation:   with keyways
Pressure capability:  up to 300 bars, specials up to 600 bars
Locking – push pull locking system. Stab plate integration
Shell material:  titanium, stainless steel AISI 316L. Other materials on request

CONTACT Ø 3 mm

Underwater mating cycles: min. 200

Mating and demating forces:

“Stab plate”  Gr.1: ca. 200 N stab plate  size 1:  approx.  200 N
Gr.2: ca. 350 N  size 2:  approx.  350 N
Gr.3: ca. 550 N  size 3:  approx.  550 N
Gr.4: ca. 750 N  size 4:  approx.  750 N

“ROV”  Gr.1: ca. 250 N ROV  size 1:  approx.  250 N
Gr.2: ca. 430 N  size 2:  approx.  430 N
Gr.3: ca. 650 N  size 3:  approx.  650 N
Gr.4: ca. 900 N  size 4:  approx.  900 N

Cable connection: PUR-moulding, oil-filled tubes, PE-hot moulding
