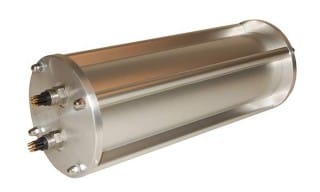

Subsea aluminium housings for instrumentation and data loggers, suitable for immersion up to 300 metres of sea water, sizes 100mm and 160mm nominal bore with internal lengths from 100mm to 700mm. Options are available for one end cap to have a clear window suitable for viewing a display or a rotary switch for power on/off or other functions requiring a switch input.
Omni Instruments can supply custom built Aluminium sub sea housings to your requirements with sub sea connectors, and an internal equipment cradle. Suitable for immersion to 300 metres seawater (external case pressure 40 Bar). Housings are hard anodised and have double O ring seals.

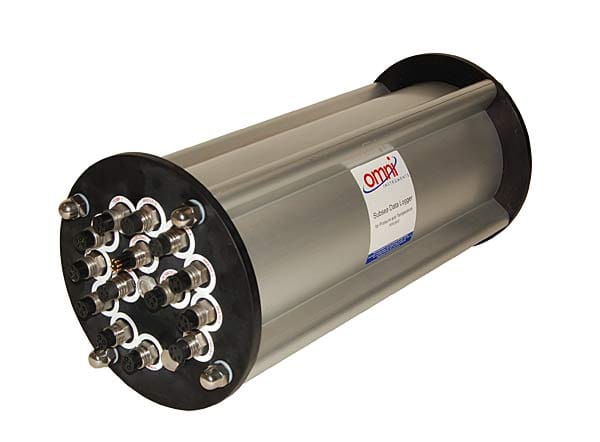

Typical housing with 160mm diameter body, fitted with subcon connectors and a data logger for a subsea acquisition application

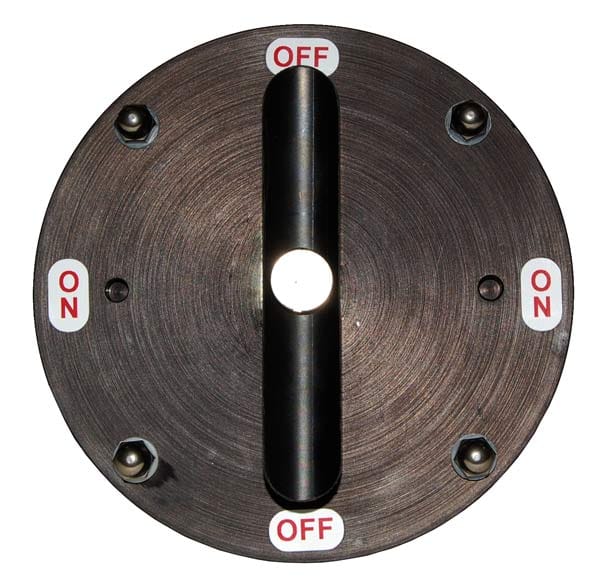

End cap fitted with a rotary switch
Associated Research Paper
University of Exeter, UK – Low Cost Equipment Housing for Underwater Use at Depths of Up to 1000m for British Cave Research Association
SUBSEA-AH-NB100-IL300-2C
£750.40
SUBSEA-AH-NB160-IL300-15C
£2,870.00
MCIL4M-1500-MCIL4M
£270.56
MCIL4M-5000-MCIL4M
£295.00
