Description

We can supply a wide range of steel wall mount enclosures suitable for the protection and mounting of data loggers, acquisition systems and instrumentation.

In addition we can supply these fitted with cable glands, connectors, DIN rail and powers supplies to your requirements. The prices quoted for connectors, cable glands etc include fitting.

Data Connectors

Part No.: EC
Description: Panel mount sealed Ethernet Cat 5e Shielded coupler, waterproof
IP/NEMA Rating: IP68 (when mated).



Part No.: UCA.
Description: Panel mount sealed USB, Type A weatherproof connector.
Approval Category: EN 60529, IP68 (when mated).



Part No.: UCB
Description: Panel mount sealed USB, Type B to A weatherproof connector.
Approval Category: EN 60529, IP68 (when mated)



All data connectors are supplied with the IP68 sealing plug to prevent water ingress when not in use. Mating cables with waterproof sealing are available separately and may be used to connect two separate enclosures.

External Antenna



Part No.: LOWPROGSMB.
Description: Quad band, low profile waterproof body mounted antenna.
Dimensions (LxWxH): 96mm x 42mm x 17mm.

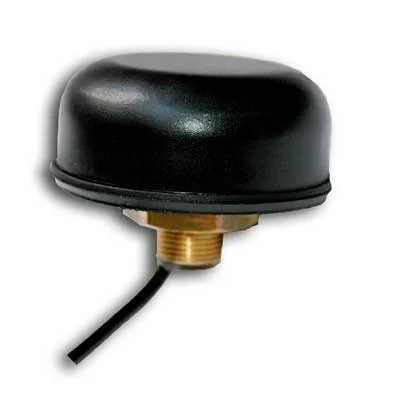

Part No.: WIFIBM.
Description: 2.4GHz dome shaped body mounted Wi-Fi antenna with screw fix and waterproof rubber seal.
Dimensions: 52mm Diameter x 22mm High.





Part No.: LOWPROUHF.
Description: Low profile UHF antenna, fully waterproof and does not require ground plane.
Dimensions (LxWxH): 348mm x 106mm x 34mm.



External antennas will be mounted into the enclosure and wired into the relevant equipment. Other antennas are available on request to suit any specific requirements.
