SSE232-ST Standard

SSE232-ST is an Ethernet communications device that can connect any serial device (RS232/485/422) to a standard Ethernet network. It will also allow you to remote access these devices from a PC. As a special feature, the SSE232-ST has built-in digital inputs / outputs. This feature is different from similar devices, as it provides a comprehensive solution for remote control applications, without the need for additional input/output modules. This unit is ideal for connecting PLC’s and other serial devices with RS232 or 485 com ports via TCP/IP to a remote PC. Utilsing the Com Port Redirector software a virtual serial port can also be configured on the remote PC to enable the use of proprietary software requiring an RS232 port to communicate with the remote device.

Need help finding the right product?

Downloads

Description

Description

Features

Serial to Ethernet Converter
Up to 4 RS232, RS485 or RS422 Serial Ports.
Transparent Serial Port Tunnel.
Ethernet I/O: Embedded Digital Inputs and Outputs.
Ethernet multi-drop configuration enabled (one server, many clients).

Technical features

Several versions available.
Remote control of digital Input/Output upon Ethernet.
Monitor Inputs / Outputs through SNMP.
Wide range 9-26vAC or 9-30vDC power supply.
Automated recovery in case of lost communication.
COM Port redirector software enables existing applications using legacy ports to access connected devices.
Industrial pluggable terminal blocks.
Wall mount support included.
Device search utility.

Configuration features

Easy Web browser configuration.
Password protected configuration.

Applications

Connection to Ethernet of master clocks for staff control with RS232 or RS485 output.
Replacement of multi-port boards, profiting from the 4 serial ports of the SSE232-ST.
Connection of PLCs with serial communication to Ethernet networks.
Interconnection of groups of scales to Ethernet network.
Monitoring access systems with RS232 communication, via Ethernet.
In general terms, this device enables Ethernet connectivity to any device with serial communication.

Product

Ref

Price

Product Description

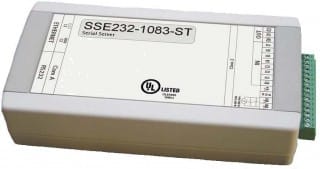

SSE232-1083-ST-HT

£406.80

Ethernet data acquisition unit, 8 digital / pulse inputs. Each channel may be configured for digital state or pulse input ( max 4Hz ). Internal back up battery stores pulse count if external power is lost. Unit publishes data to .web php page. Power supply 9-26vAC or 9-30vDC
