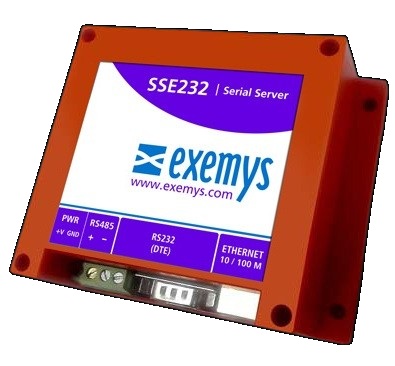

The SSE232-LE is a Serial to Ethernet converter with a single RS232/RS485 serial port. The SSE232-LE allows for the remote communication of any serial device (RS232 or RS485) over a standard Ethernet Network. The SSE232-LE works as a transparent serial server to convert the serial string to an Ethernet TCP/IP or UDP/UP protocol. Serial devices connected to an SSE232-LE unit may be connected over the Ethernet using a second SSE232 device, via virtual COM port software, or via the existing device software (requires TCP/IP compatibility). RS232 devices connect via a male DP9 connector and RS485 devices via 2 screw terminals.
The SSE232-LE is a serial to Ethernet converter suitable for low end applications. The SSE232-LE allows remote connection to a serial device from anywhere in the world via an Ethernet connection. The SSE232-LE includes screw terminals for power and RS485 connections, plus a DB9 serial connection for RS232 devices and RJ45 Ethernet port. For higher end applications, the SSE232-IA version is available with up to 4 isolated serial channels, digital I/O’s for additional control and monitoring, plus flow control on 4 serial channels.
| Network Protocols: | TCP/IP, UDP/IP. DNS, HTTP, DHCP, ICMP, ARP, SNMP. |
| Network Port: |
Ethernet 10/100 BaseT, RJ45 Connector |
| Serial Protocol: |
Transparent |
| Serial Port: |
RS232 via male DB9 and RS485 via terminal blocks |
| Supported Devices: |
Any RS232 or RS485 serial device |
| Management: | Embedded HTTP Server, Password protected |
| Indicators: | Status LED, Data/Link LED |
| Power Supply: | 10 to 30vDC @ 120mA Max |
| Dimensions: | 115 x 45 x 90mm (W x H x L) |
| Operating Temp: | -5 to +65°C |
SSE232-1B0-00-LE
£179.89
