Transparent Serial Server. 4 Configurable RS232/485 ports and one RJ45 connector Ethernet 10/100 Base T port. Powers supply 10-30vDC. Suitable for industrial applications.
£448.88

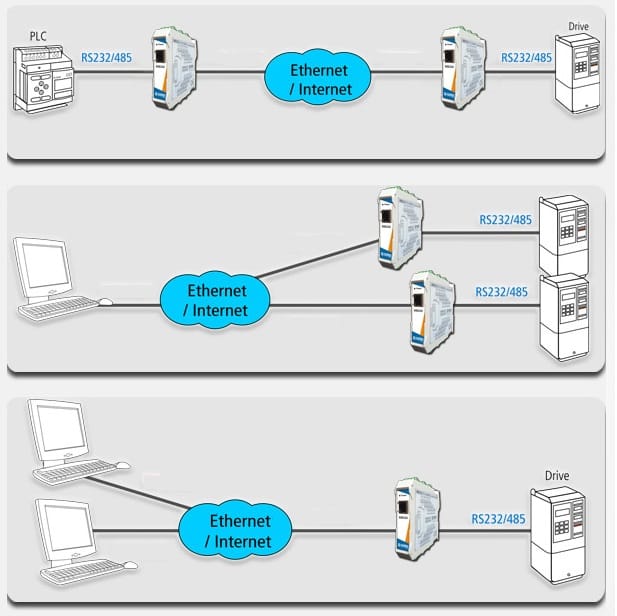

The SSE232-4B0-00-IA3 is the latest version of the SSE232-IA Serial Servers with 4 transparent serial ports. The unit allows for the remote connection of 4 separate serial devices on a single device with access from anywhere in the world via an Ethernet connection. The SSE232 works as a transparent serial server to convert the serial strings to an Ethernet TCP/IP protocol. Serial devices connected to an SSE232-IA unit may be connected over the Ethernet using a second SSE232 device, via virtual COM port software, or via the existing device software (required TCP/IP compatibility). SSE232’s are also available with single serial input channels and 10 configurable digital I/O channels for remote monitoring and control over an Ethernet connection
| Network Protocols: | TCP/IP, UDP/IP. DNS, HTTP, DHCP, ICMP, ARP, SNMP. |
| Network Port: |
Ethernet 10/100 BaseT, RJ45 Connector |
| Serial Protocol: |
Transparent |
| Serial Port: |
4 RS232/RS485 via pluggable terminal blocks |
| Supported Devices: |
Any RS232 or RS485 serial device |
| Flow Control: | RTS/CTS |
| Management: | HTTP Server, Password protected |
| Indicators: | Network LED, Link LED |
| Power Supply: | 10 to 30vDC |
| Current Used: | 70mA @ 12vDC or 40mA @ 24vDC |
| Dimensions: | 100 x 22.5 x 112mm (H x W x D) |
| Operating Temp: | -15 to +65°C |
