Description

Features

• Serial to Ethernet Converter
• Up to 4 RS232, RS485 or RS422 Serial Ports.
• Transparent Serial Port Tunnel.
• Ethernet I/O: Embedded Digital Inputs and Outputs.
• Ethernet multi-drop configuration enabled (one server, many clients).

Technical features

• Several versions available.
• Remote control of digital Input/Output upon Ethernet.
• Monitor Inputs / Outputs through SNMP.
• Wide range 9-26vAC or 9-30vDC power supply.
• Automated recovery in case of lost communication.
• COM Port redirector software enables existing applications using legacy ports to access connected devices.
• Industrial pluggable terminal blocks.
• Wall mount support included.
• Device search utility.

Configuration features

• Easy Web browser configuration.
• Password protected configuration.

Applications

• Connection to Ethernet of master clocks for staff control with RS232 or RS485 output.

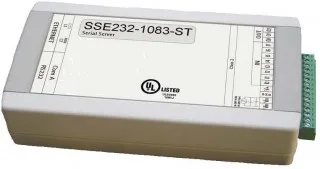

• Replacement of multi-port boards, profiting from the 4 serial ports of the SSE232-ST.
• Connection of PLCs with serial communication to Ethernet networks.
• Interconnection of groups of scales to Ethernet network.
• Monitoring access systems with RS232 communication, via Ethernet.
• In general terms, this device enables Ethernet connectivity to any device with serial communication.
