Specifications

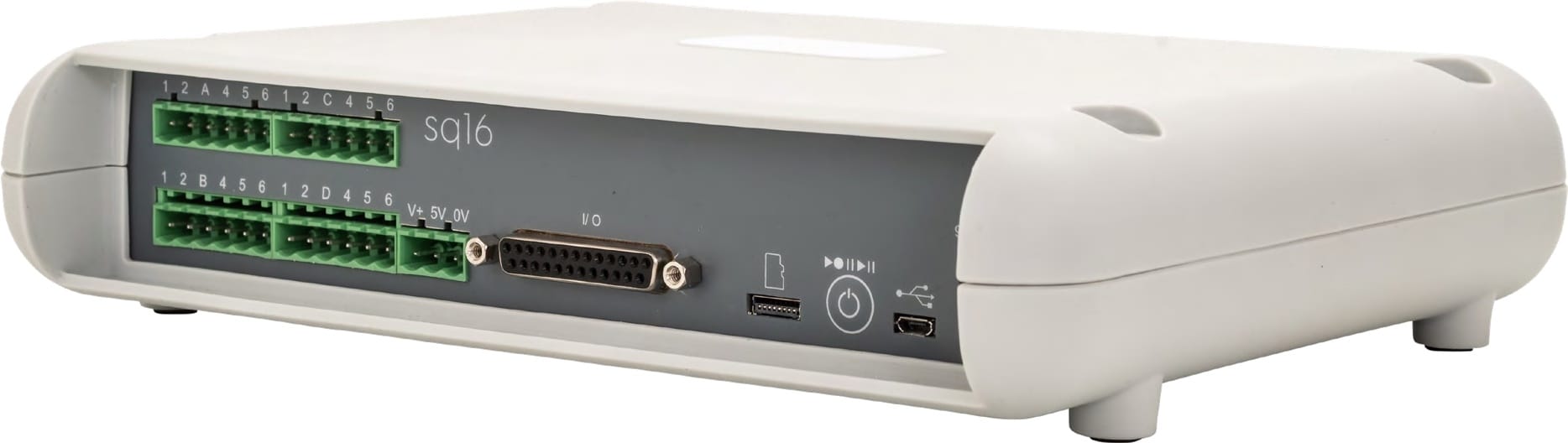

| Basic Model | SQ16 |
| No of Channels | 8 Differential, 16 Single Ended |
| Channel Expansion | No |
| 2-Wire Resistance | Yes |
| 3/4-Wire Resistance | No |
| Differential Voltage | -30 to +30V |
| ¼, ½ & Full Bridge | Yes |
| DC Voltage | Yes |
| Current Loop (4-20mA) | Yes |
| Thermocouple, Type B, C, D, J, K, N, R, S and T | Yes |
| Digital State Input Channel | Yes |
| Digital Alarm Outputs | Yes |
| Reference Junction Temperature | Yes |
| Logging Interval | 0.1 Sec to 24 Hours |
| Interfal Reference Temperature Accuracy | Better than 0.1°C over range 5-40°C |
| Fast Channels | Up to 8Hz |
| Calculated Channels | 16 |
| SDI-12 | No |
| Meter Mode (via Smartphone) | Yes |
| Battery Life | Up to 6 Months, all channels logging every 15 mins |
| External Power | 8-38vDC @ 150mA when connected to an external supply |
| Sensor Power Output | 8-38vDC @ 150mA when connected to an external supply |
| Memory | 4GB |
| USB | Yes |
| Micro SD | Yes |
| Bluetooth | Yes |
| Ethernet | No |
| WiFi | No |
| Open Thread | No |
| 4G | No |
| Lora | No |
| Operating Environment | -30 to 65°C, 0 to 95%RH (Non-condensing) |
| Dimensions | 257 x 206 x 57.3mm |
| Weight | 1.5Kg |
Squirrel SQ Logger Mobile App
The SQ series mobile app has been designed to interface with the loggers using Bluetooth or via a WiFi connected network and works on Android or iOS.
- Set-up Basic System Control via the app, start and stop logging
- Basic Analysis including meter mode, stream real-time data to your smart phone or tablet
- Email data automated, download and delivery reports
- Alarm notifications get alerts instantly
A link to the Mobile App on Google Play Store is on the image on the right.
Squirrel Software
The all-new SquirrelView software allows you to easily program the Squirrel SQ Series data loggers. Everything from standalone portable data logging, to a fixed online monitoring system measuring a host of parameters, with instant data access. SquirrelView software allows you to set up the logger and start recording in just a few clicks. Whatever your level of data logging experience, set up simple or advanced acquisitions, record, view and analyse your data quickly and easily.
SQ Hub
The SQ Hub is a communications gateway, giving connectivity between loggers and a whole host of networking possibilities. WiFi, Ethernet, Open Thread, Lora and 4G connections allowing online data from a network of loggers can be accessed instantly. With alerts, alarms and automated data forwarding. The SQ Hub gives scalability and control of multiple data loggers and inputs.
