Description

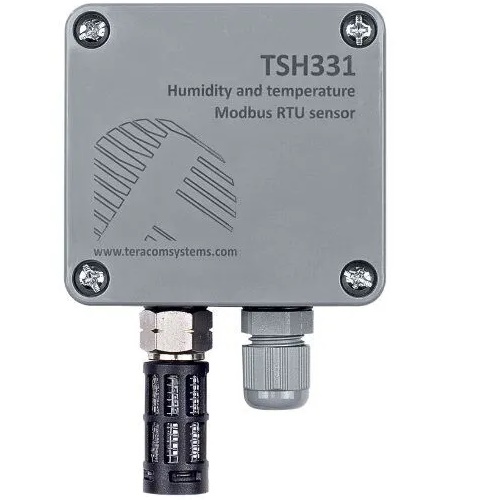

The TSH331 is a upgraded version of the TSH330 Modbus temperature and humidity sensor designed for robust environmental monitoring, communicating via an RS485 interface and supporting the Modbus RTU protocol. Unlike the limited 32 nodes of the TSH330, the new TSH331 can cover up to 247 nodes. It employs a unique capacitive element for relative humidity measurement and a bandgap element for temperature, both seamlessly coupled to a 12-bit analogue to digital converter for superior measurement quality. Its IP54 rating makes it an ideal choice for applications requiring protection against dust and water splashes. When paired with Teracom’s Ethernet or cellular controllers, the TSH331 provides an excellent solution for reliable temperature and humidity monitoring in demanding environments.

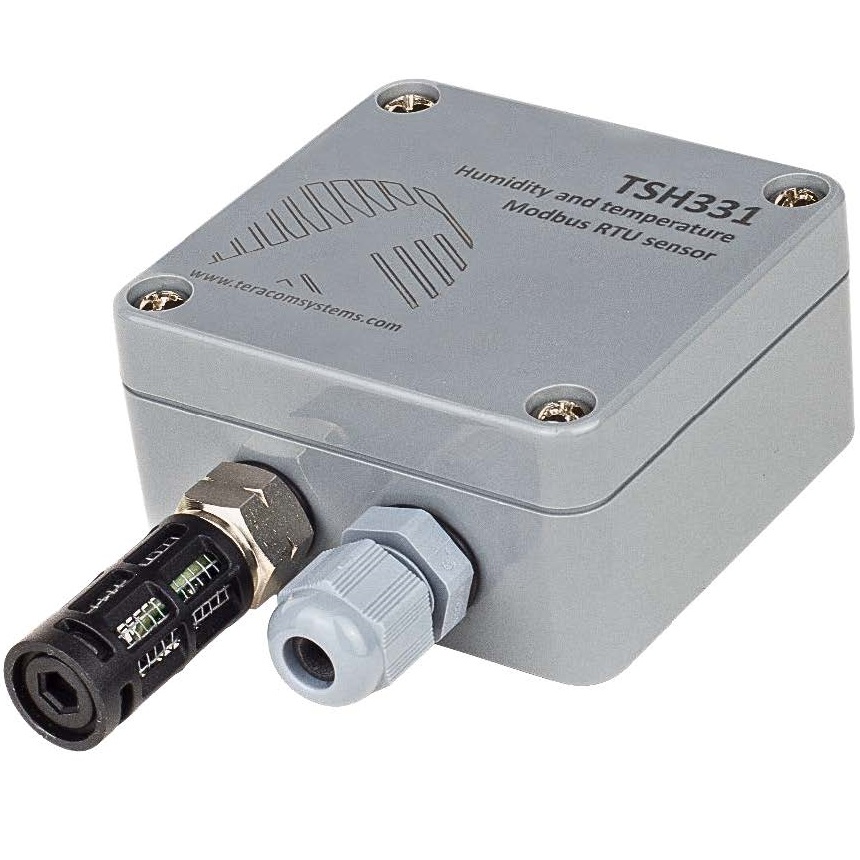

The TSH331 communicates over an RS485 interface, allowing for a different Modbus address to be set on each sensor, which facilitates multi-sensor support over a single bus. Encased in an IP65-rated enclosure, the digital sensor offers enhanced protection against both dust and water sprays. Installation is made fast and easy through its cable gland with locknut and screwless terminal block, ensuring secure and straightforward cable connections.

Features

• RS485 interface carrying up to 247 nods
• LED indicator for status of communication
• Changeable bitrate and another communication parameters
• Firmware update via the interface.

Applications

• Fleet management systems
• Environmental quality monitoring and assessment
• Humidity and temperature monitoring for vineyards, greenhouses, etc
• Humidity and temperature logging for telco facilities
• Server room and data centers humidity and temperature monitoring
• Humidity and temperature monitoring in building management systems (BMS)

Specifications

* Recommended operating range is -10 to 60°C @ 20-80%RH. Prolonged operation beyond these ranges may result in a shift of sensor reading and slow recovery time.
