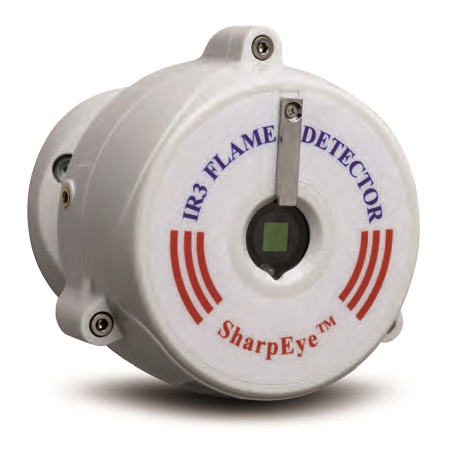

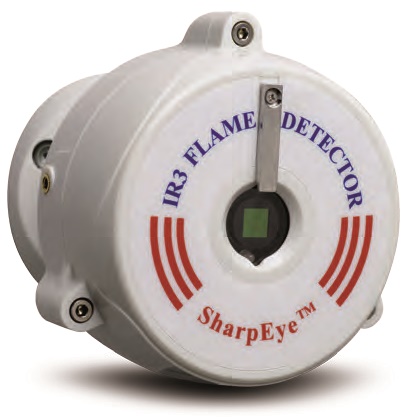

The Spectrex 20/20MPI Commercial series is a compact, lightweight Mini IR3 Flame Detectors. These detectors offer a lower cost, lower power, compact design in a polycarbonate housing. The Mini series flame detectors are ideal for indoor applications in locations such as transport terminals, storage areas, industrial kitchens and historical and cultural sites with large open areas, providing an efficient alternative smoke and heat detectors often prove to be ineffective.
| Spectral Response | Three IR Bands | |||||
| Detection Range (Highest Sensitivity Setting for 1ft² (0.1m²) pan fire) |
Gasoline n-Heptane Diesel Fuel JP5 Kerosene Alcohol (Ethanol) |
Ft 140 140 100 100 100 100 |
M 43 43 30 30 30 30 |
IPA (Isopropyl Alcohol) Methanol Methane LPG (Propane) Polypropylene Pellets Office Paper |
Ft 115 100 40 40 50 50 |
M 35 30 12 12 15 15 |
| Response Time | Typical 5 Seconds | |||||
| Adjustable Time Delay | Up to 30 Seconds | |||||
| Sensitive Range | 4 Sensitive Ranges for 1ft² (0.1m²) gasoline pan fire: 35ft (11m) up to 140ft (43m) | |||||
| Field of View | 100° horizontal, 90° vertical | |||||
| Built-in Test | Manual and Automatic BiT | |||||
| Temperature Range | Operating: -40 to 70°C (-40 to 160F) Storage: -40 to 70°C (-40 to 160F) |
|||||
| Power Supply | 18-32vDC | |||||
| Power Consumption | 20/20MPI-R @ 24vDC: Max 15mA in Stand-by. 25mA in Alarm. 20/20MPI-M @ 24vDC: Max 16mA in Stand-by. 36mA in Alarm. |
|||||
| Enclosure | Polycarbonate | |||||
| Dimensions | 119 x 119 x 74mm | |||||
20/20-MPI-M
£1,557.74
20/20-MPI-R
£1,557.74
