SRT-N118 Temperature Display

Description

The Simex SRT-N118 is a high-performance, wall-mounted digital temperature meter designed for precise monitoring in industrial environments. While the SRP-N118 series is tailored for generic process signals (mA/V), the SRT version is specifically optimized for temperature sensors, providing native support for both RTD inputs (PT100, PT500, PT1000) and a wide range of thermocouples (Type K, J, S, T, N, R, B, E). Housed in a rugged IP67 enclosure, it features a large 20mm, 4-digit red LED display and an integrated 24V DC transducer power supply. The unit includes RS-485 Modbus RTU communication as standard and offers versatile output options, including up to two relays for on/off control or an isolated analogue output for signal retransmission. Its advanced firmware allows for full linearization of sensor characteristics and peak value detection, ensuring accuracy and reliability in harsh process conditions.

Features

  • LED Display mounted in a IP67 enclosure.
  • 20mm high, 4 Digit, 7 segment LEDs, Ref or Green Colour
  • 85-260vAC, 19-50vDC or 12vDC Power supply options
  • Input for RTD or Thermocouples.
  • 2 Relay (or OC) outputs options
  • Isolated current output (option)
  • RS485 Modbus RTU
  • 24vDC Power supply output for sensor power
  • Signal peak value detection
  • Free configuration software S-Config

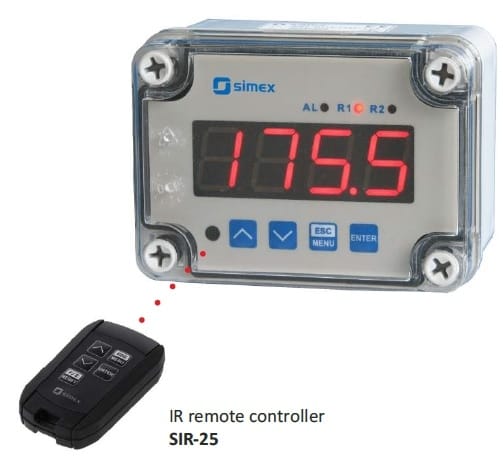

  • SIR-25 IR Controller for remote programming.



Specifications

Inputs Type Temperature Range
RTDs (2-, 3-, 4-Wire) PT100, PT500, PT1000 -100 to 600°C
Thermocouples Type K -200 to +1370°C
Type J -210 to +1200°C
Type S -50 to +1768°C
Type T -200 to +400°C
Type N -200 to +1300°C
Type R -50 to +1768°C
Type B +250 to +1820°C
Type E -200 to +1000°C

General Specifications

 Numeric display: Programmable 4 digit display from -999 to 9999 + decimal point.
8 brightness step adjustments
 Display: 7 segment LED, 4 x 20mm high
 Dimensions: 110 x 80 x 67 (110 x 105 x 67mm with glands)
 Output options: Isolated current output (optional). Range 2.8-24mA, resolution 12 bits
0, 1 or 2 relay or OC outputs.
RS485 Modbus RTU communications
 Power Supply: 85-260vAC, 19-50vDC or 12vDC
