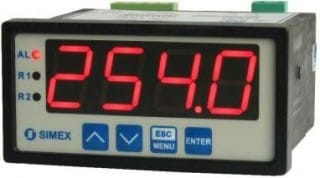

SRT-94 LED Display

Description

Features

  • 20mm high, 4 Digit, 7 segment LEDs, Red or Green Colour
  • 85-260vAC, 19-50vDC or 12vDC Power supply options
  • Input for RTD or Thermocouples.
  • 2 Relay (or OC) outputs options
  • Isolated current or voltage output (option)
  • RS485 Modbus RTU
  • 24vDC Power supply output for sensor power



Specifications

Inputs Type Temperature Range
RTDs (2-, 3-, 4-Wire) PT100, PT500, PT1000 -100 to 600°C
Thermocouples Type K -200 to +1370°C
Type J -210 to +1200°C
Type S -50 to +1768°C
Type T -200 to +400°C
Type N -200 to +1300°C
Type R -50 to +1768°C
Type B +250 to +1820°C
Type E -200 to +1000°C

General Specifications

 Numeric display:  Programmable 4 digit display from -999 to 9999 + decimal point.
8 brightness step adjustments
 Display:  7 segment LED, 4 x 20mm high
 Dimensions:  96 x 48 x 100mm
 Communications:  RS485 Modbus RTU communications
 Power Supply:  85-260vAC, 19-50vDC or 12vDC
