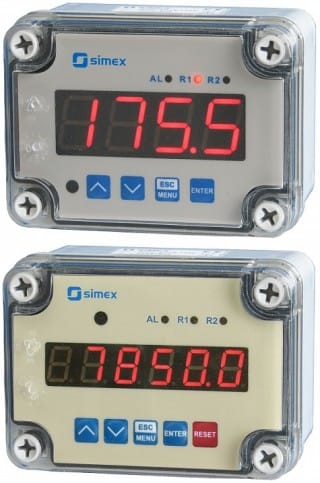

SRP-N118(6) LED Display

Description

Features

  • LED Display mounted in a IP65 enclosure.
  • 20mm high, 4 Digit, 7 segment LEDs
  • 85-260vAC or 24vDC Power supply
  • Input for mA and V.
  • 2 Relay (or OC) outputs options
  • Isolated current output (option)
  • 24vDC Power supply output for sensor power
  • Signal peak value detection

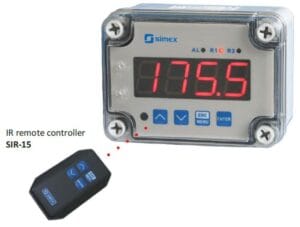

  • SIR-15 IR Controller for remote programming.



Specifications

Inputs:
Voltage: 0-5 V, 1-5V, 0-10V or 2-10V, programmable, input resistance > 50 kΩ
Current: 0-20 mA or 4-20 mA, programmable, input resistance < 65 Ω (typ. 55 Ω), overload-protected, input current limited to 40 mA;

General Specifications

 Numeric display:  Programmable 4 digit display from -999 to 9999 + decimal point.
8 brightness step adjustments
 Display:  7 segment LED, 4 x 20mm high
 Dimensions:  100 x 80 x 67 (110 x 105 x 67mm with glands)
 Output options:  Isolated current output (optional). Range 2.8-24mA, resolution 12 bits
0, 1 or 2 relay or OC outputs.
RS485 Modbus RTU communications
 Power Supply:  85-260vAC or 19-50vDC
