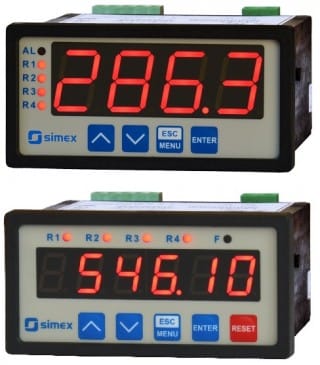

Name:

SRP-94(6)

Power supply:

• 19V ÷ 50V DC
• 16V ÷ 35V AC
• 85 ÷ 260V AC/DC

Power consumption:

• for 85 ÷ 260V AC/DC and 16V ÷ 35V AC power supply: max. 4,5 VA
• for 19V ÷ 50V DC power supply: max. 4,5 W

Display:

LED, red, 4 x 20 mm high or 6 x 13mm high

Input:

• current 0-20 mA or 4-20 mA, programmable, input resistance < 65 Ω (typ. 55 Ω), overload-protected, input current limited to 40 mA
• voltage 0-5 V, 1-5V, 0-10V or 2-10V, programmable, input resistance > 50 kΩ
• mV 0-60mV, 0-75mV, 0-100mV, 0-150mV, programmable, input resistance > 100 kΩ

Displayed values range:

-999 to 9999, or -99999 to 999999 + decimal point

Accuracy:

± 0.1% @ 25°C ± one digit in the entire operation range

Outputs:

0, 2 or 4; relays 1A/250V AC (cosø=1) or the OC 30mA/30VDC/100mW

Transducer power supply output:

24V DC +5%, -10% / max. 100 mA, stabilized, not insulated from measuring inputs

Active current output:

operating range max. 0 – 24 mA, load resistance max. 700 Ω (option available with 2 relays, see ordering)

Communication interface:

RS-485, 8N1 and 8N2, 1200 bit/s ÷ 115200 bit/s, Modbus RTU, not galvanically isolated from measuring inputs

Operating temperature:

0°C ÷ +50°C

Storage temperature:

-10°C ÷ +70°C

Protection class:

• IP 65 (front side when an additional frame is installed)
• IP 40 (front side)
• IP 20 (case and connection clips)

Case:

board

Case material:

NORYL – GFN2S E1

Case dimensions:

96 x 48 x 100 mm

Panel cut-out dimensions:

90,5 x 43 mm

Installation depth:

min. 102 mm

Board thickness:

max. 5 mm
