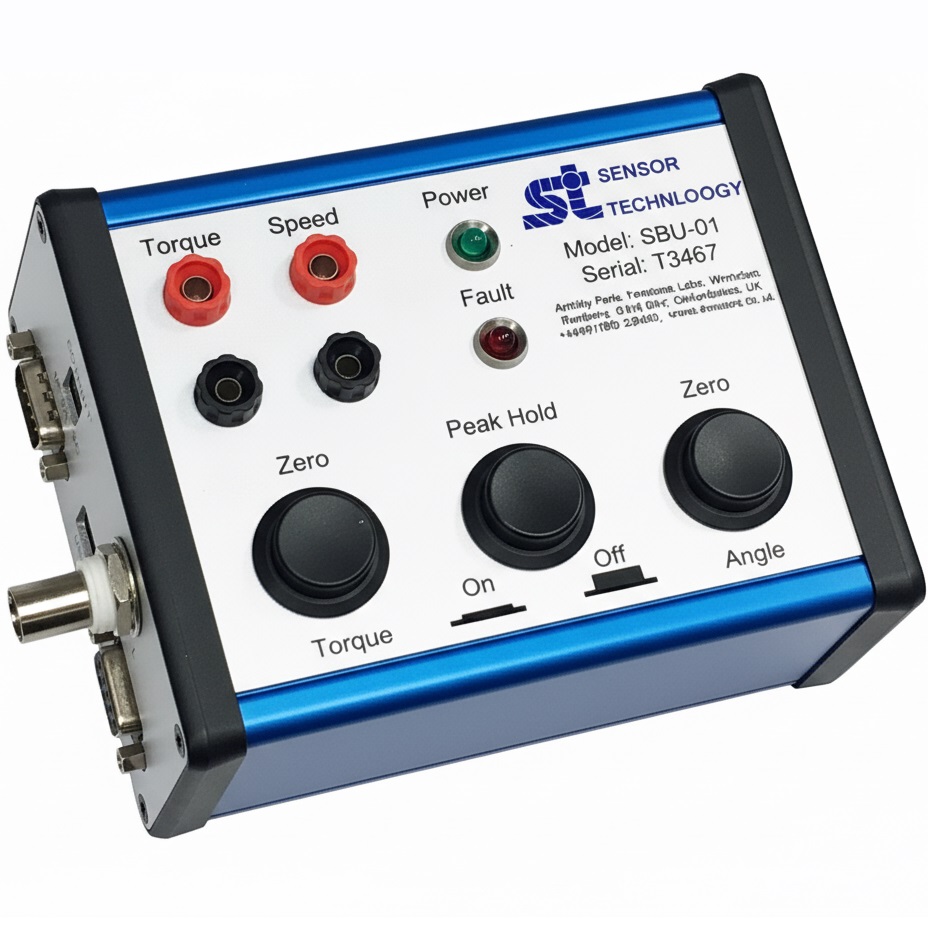

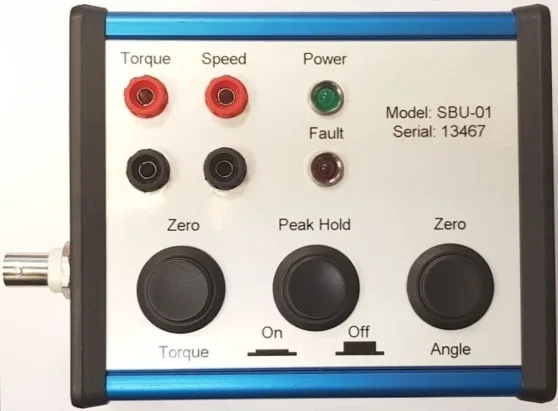

Transducer Signal Breakout Unit. The Breakout Box is an optional accessory which when plugged in, provides easy access for terminals and all of the inputs and outputs in one place. The Breakout Box provides 4mm sockets to output an analog torque and speed signal and allow communication with a PC via the built-in USB and RS232 ports (if supplied from the sensor). The SBU-01 Transducer Signal Breakout unit can be use with any SGR, ORT and RWT transducers.

Products available below, or contact us for more options and pricing.

Need help finding the right product?

CONTACT US

Downloads

Datasheet

TorqSense Signal Breakout Unit

Description

The SBU-01 Transducer Signal Breakout unit can be use with any SGR, ORT and RWT transducers. The unit provides easy access to all the transducer functions including Analogue outputs, RS232, USB and the optional CANbus comms. Users can also zero the transducer with the SBU-01, and it provides indication of transducer operational status.

Benefits

  • No need to wire in your own switches/cables
  • Connects to transducer via ACC-03 and/or ACC-04 cables
  • Keeps all functions in the same place
  • Useful for testing & diagnostics

Features

  • Analogue outputs for both Torque & Speed, or user defined outputs
  • Ability to zero torque
  • Ability to enable peak hold
  • Shows sensor status
  • RPM TTL out
  • RS232 output to computer (SGR52x, SGR54x, RWT42x, RWT44x, ORT24x series only)
  • USB output to computer (SGR52x, SGR54x, RWT42x, RWT44x, ORT24x series only)

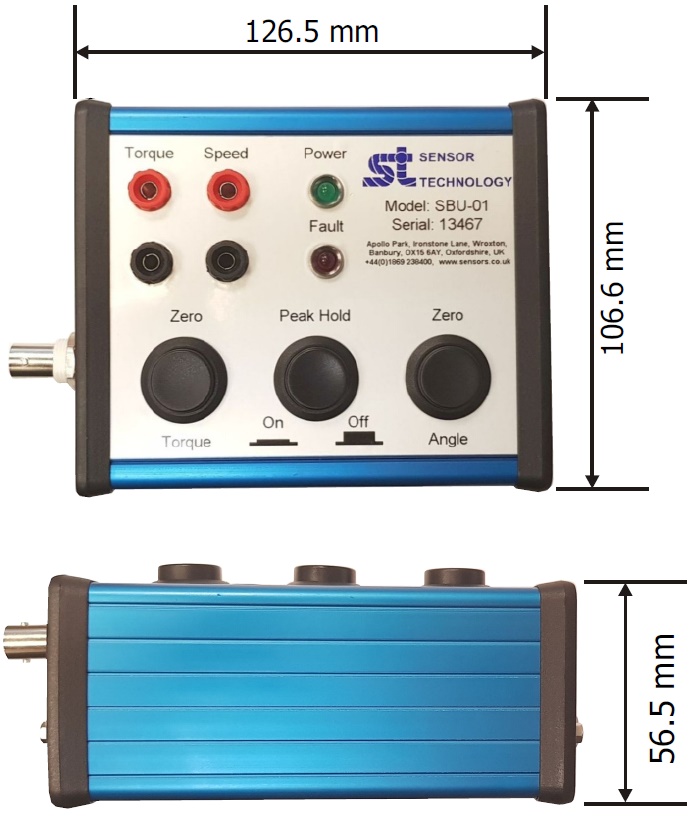

Dimensional Drawing
