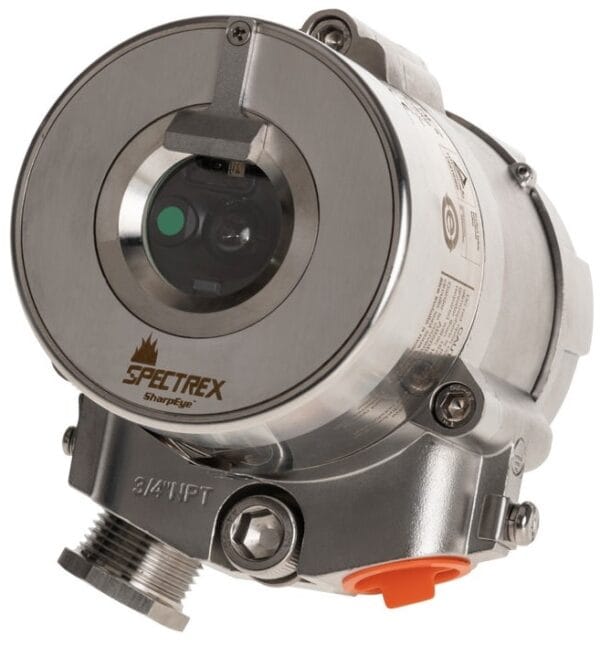

SharpEye 40/40D-LB Ultra Fast Ultraviolet Infrared (UV/IR) Flame Detector. Spectral Response: Ultraviolet: 0.185 to 0.260µm; Infrared: 2.5 to 3.0µm, 3 sensitivity ranges and Field of View of 100° Horizontal & 95° Vertical. Standard (<5 secs), Ultra Fast (<20msecs) and High speed response of 50mSecs. 0-5V analogue output, SPST Volt Free Alarm, Fault and Auxiliary relays. Stepped 0-20mA signal with HART Comms, plus RS485 Modbus Comms. Power Supply: 18-32vDC. All via 17 terminal accessed through 2 x M25 or 2 x ¾” NPT cable entries. Heavy duty Copper free Aluminium, or Stainless Steel 316 enclosure. Dimensions: 100.6 x 117 x 155mm. IP Rating: IP66 and IP68 per EN60529, NEMA 250 6P. ATEX/IECEx Certification: Ex II 2 G D, Ex db eb IIC T4 Gb, Ex tb IIIC T110°C Db, Ta = -50 to +85°C.
The SharpEye 40/40D-LB Ultra Fast UV/IR flame detector is part of the leading, next generation SharpEye 40/40 series. Detects flames with a large variety of hazardous sources, such as hydrocarbon-based fuel and gas, hydroxyl, hydrogen, metal, inorganic, etc. Featuring ultra fast detection in 20 msec with proven immunity to false alarms, integrating UV and IR optical sensors to ensure flawless performance.
Integrating ultraviolet (UV) and infrared (IR) optical sensors for detection of fires from a large variety of hazardous sources, such as hydrocarbon-based fuel and gas, hydroxyl, hydrogen, metal, inorganic, etc.
| Spectral Response | Ultraviolet: 0.185 to 0.260µm
Infraref: 2.5 to 3µm |
|
| Detection Response Time | Standard Response: Ultra Fast Response: High Speed Response (Explosion): |
Typically 5 secs at 93ft (28m) 20msec for flash fire pan fire from 10ft (3m) distance50msecs for 1ft (0.3m) diameter sphere LPG/Air mixture explosion at 32.8ft (10m) |
| Sensitivity Ranges | 3 Sensitivity Ranges for 1ft² (0.1m²) n-Heptane Pan Fire | |
| Field of View | Horizontal: 100°, Vertical: 95°. | |
| Temperature Range | Operating Storage Temperature: -76 to 185F (-60 to +85°C) | |
| Humidity | Non-condensing Relative Humidity up to 100% | |
| Power Supply | 24vDC Nominal (18-32vDC) |
| Power Consumption
|
Standby: Maximum 3W (8W with heated window) Alarm: Maximum 4.2W (9.6W with heated window) |
| Electrical Input Protection | According to EN 50130 |
| Electromagnetic Compatibility | EMI/RFI Protected to EN61000-6-3 and EN50130 |
| Electrical Interference | The detector includes 17 terminals, one wiring option |
| Relays | Alarm, Fault, and Auxiliary SPST volt-free contacts rated 2A at 30vDC |
| Analogue Output
|
Analogue Port Malfunction: 0V (<0.5V) Normal: 2V ±0.3V Alarm/Explosion: 5V ±0.3V |
| 0-20mA (Stepped)
|
Fault: 0 ±1mA Built-in Test (BIT) Fault: 2mA ± 0.3mA Normal: 4mA ± 0.3mA Warning: 16mA ± 0.3mA Alarm: 20mA ±0.3mA |
| HART Protocol
|
HART Communication on the 0-20 Analogue Current (FSK) used for maintenance, configuration changes, and asset management, available in mA source output wiring option |
| RS485 | RS485 Modbus compatible communications link that can be used in computer controlled installations |
| Enclosure Options:
|
Electropolished Stainless Steel 316 Heavy Duty Copper Free Aluminium (less than 1%), Polyurethane Painted |
| Mounting: | Electropolished Stainless Steel 316 |
| Dimensions: | Detector: 4″ x 4.6″ x 6.18″ (100.6 x 117 x 155mm) |
| Weight:
|
Detector Stainless Steel: 6.3lb (2.9Kg) Detector Aluminium: 2.8lb (1.3Kg) Tilt Mount: 2.5lb (1.1Kg) |
| Environmental Standards | DNV 2-4 |
| Water and Dust: | IP66 and IP68 per EN60529 NEMA 250 6P |
| ATEX and IECEx
|
Ex II 2GD Ex db eb IIC T4 Gb Ex tb IIIC T110 °C Db Ta = -50 °C to +85 °C IP66/IP68 |
| FM/FMC/CSA
|
Class I Division 1, Groups B, C, and D, T4 Class II/III Division 1, Groups E, F, and G, T4 Class I, Division 2, Groups B, C, and D, T4 Ta = -50 °C to +85 °C Type 6P; IP 66/68 6.6 ft (2 m) for 45 minutes |
| TR CU (EAC) | 1Ex d e IIC T4 Gb Ex tb IIIC T110 °C Db Ta = -60 °C to +85 °C IP66/IP68 |
| IN METRO | Pending |
