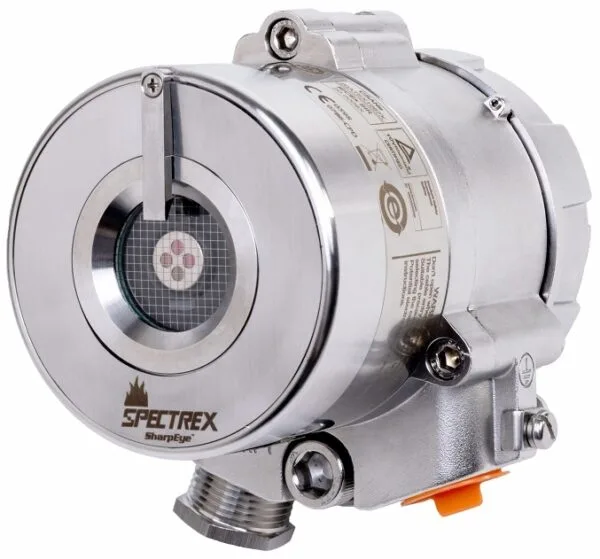

SharpEye 40/40D-I Ultra Fast Multispectrum Quad-Sense IR3 Flame Detector. Spectral Response: Four Infrared (IR) bands between 4µm and 5µm, 6 sensitivity ranges and Field of View of 100° Horizontal & 95° Vertical. Standard (<2 secs), Ultra Fast (<1 Sec) and High speed response of 50mSecs. 0-5V analogue output, SPST Volt Free Alarm, Fault and Auxiliary relays. Stepped 0-20mA signal with HART Comms, plus RS485 Modbus Comms. Power Supply: 18-32vDC. All via 17 terminal accessed through 2 x M25 or 2 x ¾” NPT cable entries. Heavy duty Copper free Aluminium, or Stainless Steel 316 enclosure. Dimensions: 100.6 x 117 x 155mm. IP Rating: IP66 and IP68 per EN60529, NEMA 250 6P. ATEX/IECEx Certification: Ex II 2 G D, Ex db eb IIC T4 Gb, Ex tb IIIC T110°C Db, Ta = -50 to +85°C.
The SharpEye 40/40D-I Multispectrum Quad-Sense flame detector is part of the leading, next generation SharpEye 40/40 series. Featuring superior, longest distance detection of hydrocarbon fires at up to 300 ft (90 m), exceptional ultra-fast detection in under 50 msec and unparalleled reliability, the 40/40D-I is based on proven Triple-IR (IR3) technology, ensuring highest sensitivity with proven immunity to false alarms
Multi-Spectrum Quad-Sense Flame Detector – integrating four IR sensors to further improve differentiation of flame sources from non-flame background radiation
| Spectral Response | Four Infrared (IR) Bands between 4µm and 5µm | |
| Detection Response Time | Standard Response: Ultra Fast Response: High Speed Response (Explosion): |
Typically <2 secs at 131ft (40m) and 10 sec at 300ft (90m) Typically <1 sec at 100ft (30m)50msecs for 1ft (0.3m) diameter sphere LPG/Air mixture explosion at 32.8ft (10m) |
| Sensitivity Ranges | 6 Sensitivity Ranges for 1ft² (0.1m²) n-Heptane Pan Fire | |
| Field of View | Horizontal: 100°, Vertical: 95°. | |
| Temperature Range | Operating Storage Temperature: -76 to 185F (-60 to +85°C) | |
| Humidity | Non-condensing Relative Humidity up to 100% | |
| Power Supply | 24vDC Nominal (18-32vDC) |
| Power Consumption
|
Standby: Maximum 3W (8W with heated window) Alarm: Maximum 4.2W (9.6W with heated window) |
| Electrical Input Protection | According to EN 50130 |
| Electromagnetic Compatibility | EMI/RFI Protected to EN61000-6-3 and EN50130 |
| Electrical Interference | The detector includes 17 terminals, one wiring option |
| Relays | Alarm, Fault, and Auxiliary SPST volt-free contacts rated 2A at 30vDC |
| Analogue Output
|
Analogue Port Malfunction: 0V (<0.5V) Normal: 2V ±0.3V Alarm/Explosion: 5V ±0.3V |
| 0-20mA (Stepped)
|
Fault: 0 ±1mA Built-in Test (BIT) Fault: 2mA ± 0.3mA Normal: 4mA ± 0.3mA Warning: 16mA ± 0.3mA Alarm: 0mA ±0.3mA |
| HART Protocol
|
HART Communication on the 0-20 Analogue Current (FSK) used for maintenance, configuration changes, and asset management, available in mA source output wiring option |
| RS485 | RS485 Modbus compatible communications link that can be used in computer controlled installations |
| Enclosure Options:
|
Electropolished Stainless Steel 316 Heavy Duty Copper Free Aluminium (less than 1%), Polyurethane Painted |
| Mounting: | Electropolished Stainless Steel 316 |
| Dimensions: | Detector: 4″ x 4.6″ x 6.18″ (100.6 x 117 x 155mm) |
| Weight:
|
Detector Stainless Steel: 6.3lb (2.9Kg) Detector Aluminium: 2.8lb (1.3Kg) Tilt Mount: 2.5lb (1.1Kg) |
| Environmental Standards | DNV 2-4 |
| Water and Dust: | IP66 and IP68 per EN60529 NEMA 250 6P |
| ATEX and IECEx
|
Ex II 2GD Ex db eb IIC T4 Gb Ex tb IIIC T110 °C Db Ta = -50 °C to +85 °C IP66/IP68 |
| FM/FMC/CSA
|
Class I Division 1, Groups B, C, and D, T4 Class II/III Division 1, Groups E, F, and G, T4 Class I, Division 2, Groups B, C, and D, T4 Ta = -50 °C to +85 °C Type 6P; IP 66/68 6.6 ft (2 m) for 45 minutes |
| TR CU (EAC) | 1Ex d e IIC T4 Gb Ex tb IIIC T110 °C Db Ta = -60 °C to +85 °C IP66/IP68 |
| IN METRO | Pending |
To purchase the Flame detector click the related product listed below.

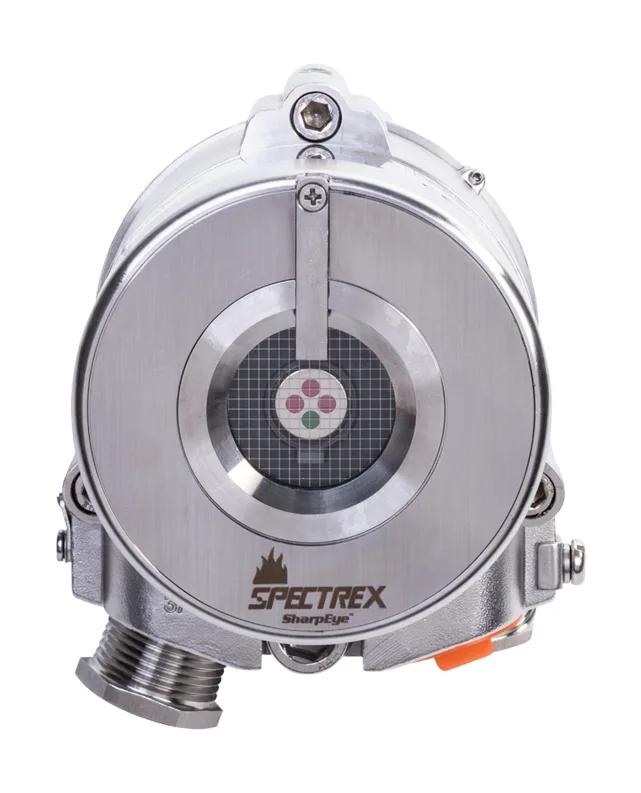

SharpEye Premium 40/40D Flame Detector.
