Description

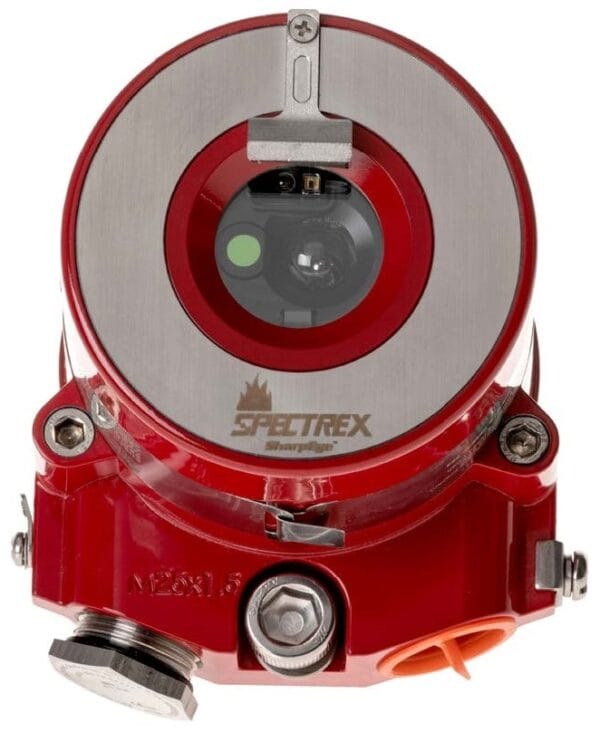

The SharpEye 40/40C-LB Integrated UV/IR flame detector is part of the leading, next generation SharpEye 40/40 series. Provides fast detection of Hydrocarbon-based fuel and gas, Hydrxyl, Hydrogen, metal, inorganic fires in under five seconds.

Features and Benefits

• Fast detection in under five seconds
• Proven false alarm immunity
• Unparalleled reliability – 150,000 hours MTBF
• Best in class temperature range: -40 °F (-40 °C) to 167 °F (75 °C)
• Worldwide and regionally certified for hazardous areas
• Performance and reliability approved by recognizable certification bodies
• SIL3 compatible
• Enhanced durability backed up with five-year warranty
• Innovative UV & IR built-in test – continuously validating the optical integrity and the electronic circuitry
• Multiple output options for maximum compatibility with standard infrastructures
• Plug and play – factory calibrated for immediate use in any fire detection system
• Universal wiring option for fast ordering process
• Two sensitivity levels, adapting to any application
• Heated optics for impeccable performance in challenging environmental conditions
• Internal log event recorder to analyze past events

Applications

• Oil & gas onshore and offshore installations and pipelines
• Explosives and munitions
• Petrochemical and Chemical plants
• Storage tank farms
• Aircraft hangars
• Power generation facilities
• Pharmaceutical industry
• Printing industry
• Refinery hydrogeneration
• Warehouses
• Waste disposal facilities
• Aerospace industry
• Hydrogen fuel cell industry
• Hydrogen fvehicle parking and refueling
• Battery charging areas
• Space industry hydroxyl propellant
• Static fuel cell systems
• Light industry

Specifications

General Specifications

Spectral Response	Ultraviolet: 0.185 to 0.260µm Infraref: 2.5 to 3µm
Detection Response Time	Standard Response:	Typically 5 seconds
Sensitivity Ranges	2 Sensitivity Ranges for 1ft² (0.1m²) n-Heptane Pan Fire
Field of View	Horizontal: 100°, Vertical: 95°.
Temperature Range	Operating Storage Temperature: -40 to 167F (-40 to +75°C)
Humidity	Non-condensing Relative Humidity up to 100%

Electrical Specifications

Power Supply	24vDC Nominal (18-32vDC)
Power Consumption	Standby: Maximum 3W (8W with heated window) Alarm: Maximum 4.2W (9.6W with heated window)
Electrical Input Protection	According to EN 50130
Electromagnetic Compatibility	EMI/RFI Protected to EN61000-6-3 and EN50130
Electrical Interference	The detector includes 17 terminals, one wiring option

Outputs

Relays	Alarm, Fault, and Auxiliary SPST volt-free contacts rated 2A at 30vDC
Analogue Output	Analogue Port Malfunction: 0V (<0.5V) Normal: 2V ±0.3V Alarm/Explosion: 5V ±0.3V
0-20mA (Stepped)	Fault: 0 ±1mA Built-in Test (BIT) Fault: 2mA ± 0.3mA Normal: 4mA ± 0.3mA Warning: 16mA ± 0.3mA Alarm: 20mA ±0.3mA
HART Protocol	HART Communication on the 0-20 Analogue Current (FSK) used for maintenance, configuration changes, and asset management, available in mA source output wiring option
RS485	RS485 Modbus compatible communications link that can be used in computer controlled installations

Mechanical Specifications

Enclosure Options:	Heavy Duty Copper Free Aluminium (less than 1%), Polyurethane Painted
Mounting:	Electropolished Stainless Steel 316
Dimensions:	Detector: 4″ x 4.6″ x 6.18″ (100.6 x 117 x 155mm)
Weight:	Detector Aluminium: 2.8lb (1.3Kg) Tilt Mount: 2.5lb (1.1Kg)
Environmental Standards	DNV 2-4
Water and Dust:	IP66 and IP68 per EN60529 NEMA 250 6P

Approvals

ATEX and IECEx	Ex II 2GD Ex db eb IIC T4 Gb Ex tb IIIC T110 °C Db Ta = -40 °C to +75 °C IP66/IP68
FM/FMC/CSA	Class I Division 1, Groups B, C, and D, T4 Class II/III Division 1, Groups E, F, and G, T4 Class I, Division 2, Groups B, C, and D, T4 Ta = -40 °C to +75 °C Type 6P; IP 66/68 6.6 ft (2 m) for 45 minutes
TR CU (EAC)	1Ex d e IIC T4 Gb Ex tb IIIC T110 °C Db Ta = -40 °C to +75 °C IP66/IP68
IN METRO	Pending
