SGW1-MB-NM - NMEA to Modbus Converter

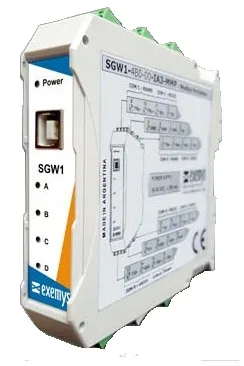

SGW1-IA3-MB-NM NMEA to Modbus Converter

The SGW1-MB-NM allows you to read NMEA 0183 data coming from a GPS device or weather station using a Modbus device. This unit will convert NMEA data to Modbus registers, allowing Latitude, Longitude, Course, Speed, etc from a GPS device to be collect via a Modbus network.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

SGW1 NMEA to Modbus Converter

Description

Features

  • DIN Rail Mounted
  • 2 x RS232/RS485 Ports (1 NMEA + 1 Modbus)
  • Modbus ASCII or RTU Protocols
  • NMEA 0183 Sentence: GGA; VTG; MWV; XDR; ROT; VBW; DPT; HDM; HDT; RMC; RMB; APB; DBT; MTW; MTA; RSA*.
  • Baud Rates up to 115200 bps.
  • Easy to install and set-up through a serial console
  • Power supply: 10-30vDC 12vDC @ 70mA
  • USB Configuration

This unit can be used to connected a serial MetPak weather station, Ultrasonic Anemometers and Garmin GPS devices to a Modbus device, eg. GRD, CMC-99 or HMI panels.

*For any other NMEA sentences, please contact our technical sales team

Product

Ref

Price

Product Description

SGW1-2B0-00-IA3-MB-NM

£305.20

SGW1 – NMEA 0183 to Modbus RTU/ASCII protocol converter. 2 RS232/RS485 ports (1 x NMEA + 1 x Modbus) plus USB port for configuration. This converter will read the data on an NMEA 0183 device and map the readings to Modbus registers. Power supply: 10-30vDC, consumption 70mA @ 12vDC. Dimensions: 100 x 22.5 x 112mm. Operating Temperature: -15 to 65°C.
MORE INFO
Add to basket
