Description

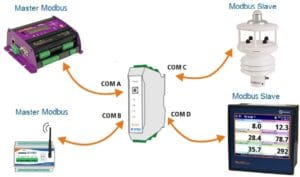

The SGW1-IA3-MMP is a Modbus communications multiplexer/converter over serial ports. It allows you to connect Modbus RTU/ASCII masters to Modbus RTU/ASCII slaves. Each of the serial devices can operate with Baud Rate, Data Bits, Parity, Bits Stop and different Modbus protocol type (RTU or ASCII). The SGW1-IA3-MMP orders the interrogations coming from the different masters assigning a priority according to the order of arrival of the different masters, and then sends them to the slaves.
As an additional function, the device allows the exchange of information between Modbus masters through the 1000-byte exchange memory that can be read and written by any of the connected masters.
Features
- Up to 3 ports to connect Masters.
- Up to 3 ports to connect Slaves.
- No need of registers tables.
- DIN Rail mounting.
- Wide range power supply, 10 to 30vDC.
- Easy configuration.
- Industrial pluggable terminal blocks.
- USB Configuration
Specifications
| Network Protocols: | Modbus RTU or Modbus ASCII |
| Network Port: | 4 RS232/RS485 Plug-in terminals + 1 USB Kind B |
| Configuration: | USB Console |
| Modbus Masters: | Up to 3 ports for Master devices |
| Modbus Slaves: | Up to 3 ports for Slave devices |
| Power Supply: | 10 to 30vDC, 200mA max. |
| Power Consumption: | 70mA @ 12vDC or 40mA @ 24vDC |
| Operating Temp: | -15 to 65°C |
| Dimensions: | 100 x 22.5 x 112mm (H x W x D) |
The SGW1-IA3-MMP provides a command console for configuration via a USB port. To access it, the SGW1-IA3-MMP must be connected to a PC and the Exemys Console program provide the interface to configure the device as required.
