Description

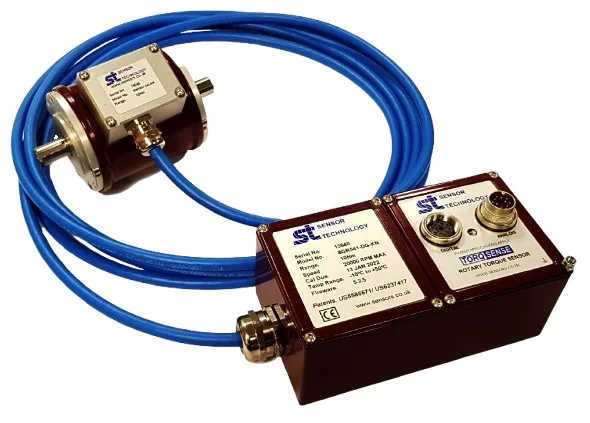

SGR530 Torque Transducer – Torque Measurement only

SGR531 Torque Transducer – Torque, Speed & Power Measurement (60 pulses per revolution encoder)

SGR532 Torque Transducer – Torque, Speed & Power Measurement (360 pulses per revolution incremental encoder)

Key Benefits

• Transducer range from 175mNm through to 13,000Nm
• Large fully functional overrange capability of 250%
• Separate Digital Electronics
• Minimal side and end load errors
• Low Linearity deviation of ±0.05% FSD
• Low Hysteresis error of ±0.05% FSD
• Zero variation in torque signal with rotation (Cyclic Variation)
• Non-contact signal transmission, no slip rings to wear out.
• High digital sample rate of 4,000 samples per second
• Speed measurements/Power computation
• Wide Power Supply range 12-32vDC

TorqSense SGR53x Series transducers offer:

• Fixed analogue voltage or current outputs. 3 channels available, assignment depending on model.
• BIT Self-diagnostics for letting the manufacturer know that the transducer torque or speed ratings have not been exceeded and the transducer’s last calibration date
• Sensors to monitor shaft temperature for better compensation and accuracy
• Transducer status LED and simple ‘Sensor Status’ output pin, provides transducer health feedback.

Torque ranges available at any full scale torque: 1Nm to 13,000Nm, with above 13,000Nm on request.

First Annual Recalibration is included in the purchase price. Units must be returned to Omni Instruments for Recalibration
