Description

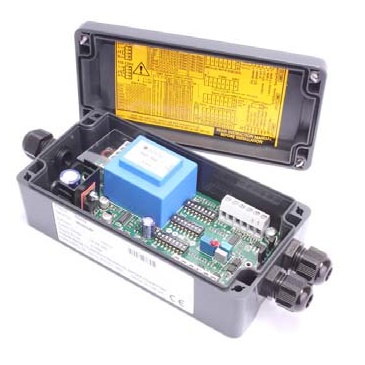

The SGA load cell amplifier and signal conditioner is a high-stability, high-speed solution designed to provide a conditioned analogue output from up to four 350Ω strain gauge bridges connected in parallel. Capable of processing low-level signals down to 0.06mV/V, it converts them into industry-standard outputs such as 0-10vDC or 4-20mA, all while housed in a rugged, IP67-rated ABS enclosure suitable for diverse industrial environments. The unit features non-interactive zero and span controls for straightforward configuration, along with a variable low-pass filter for application-specific fine-tuning. Available in two versions, the AC-powered SGA/A (110/240vAC) and the DC-powered SGA/D (18-24vDC), the amplifier can be supplied fully wired and calibrated with any compatible strain gauge transducer from the associated product range.

Features

• Very Stable Bridge Excitation
• Selectable Sensitivity 0.06 to 30 mV/V
• User Selectable Analogue Outputs: ±10V, ±5V, 0-10V, 0-5V, 0-20mA, 4-20mA

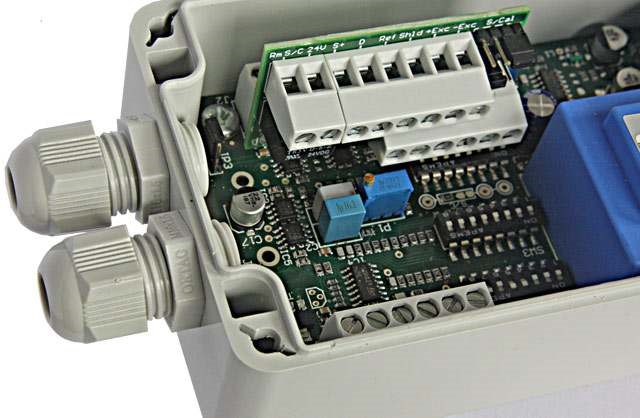

• Bridge Completion Module Available
• IP65 ABS Enclosure with 3 Cable Glands
• Surface mount PCB
• Wide Range Filtering 1Hz to 5kHz
• Switch Selectable Offset ±80% FS
• Bridge Excitation: Regulated 5V or 10V, up to 4 x 350R Strain Bridges
• 3 Years Manufacturer’s Warranty
• Full CE Approval

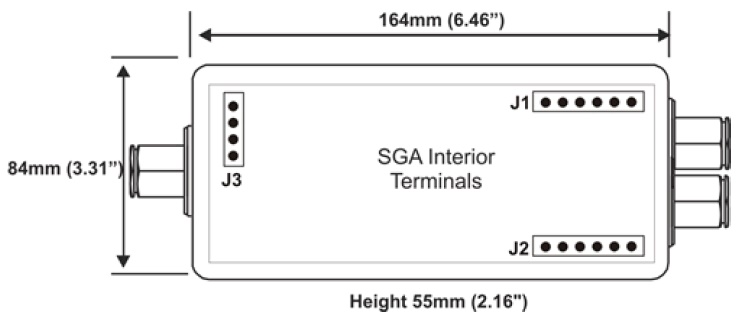

Diagram
