Description

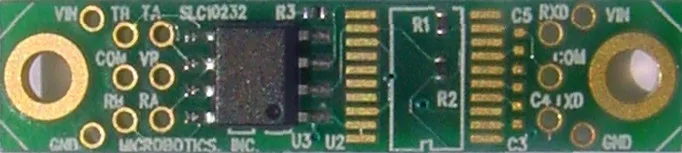

The SLC10232 is a single channel serial converter that provides RS232/RS422 or RS232/TTL conversion.

The SLC10422-TTL is a single channel serial converter that provides RS422/TTL conversion.

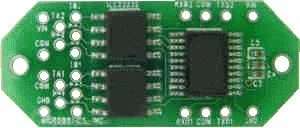

The SLC22232 is a dual channel serial converter that provides conversion of two full duplex channels with a single board.

RS232 to/from RS422 Serial Converter Features:

• Extremely small serial level converter
  1.30 x .30 in. (33.0 x 7.6 mm) for the SLC10232 and SLC10422-TTL
  1.53 x .63 in. (38.9 x 16.0 mm) for the SLC22232
• Provides bi-directional channels, each of which converts RS232 signals from a computer to/from RS422 or TTL format for a variety of digital devices
• Designed to be wired directly into the wiring harness
• On board mid-level voltage reference to support TTL <=> RS-232 conversion
• Wide supply range, 4 VDC to 40 VDC
• 30 Day Free Support

Typical Applications for the RS232 to/from RS422 Serial Converter

• Industrial serial communications
• Interconnecting serial communication devices including RF transceivers, navigation instruments, and payloads
• Extending RS 232 communication links over long distances and through noisy environments
