The Serial COM Port Redirector creates a virtual COM port on a PC for applications to use networked serial servers. The application software should be able to use the virtual COM port to connect to a remote device as if it were directly connected to the PC. The software is compatible with a wide range of TCP/IP-based serial servers and the Serial/IP Redirector supports advanced protocols and offers highly configurable virtual COM ports.

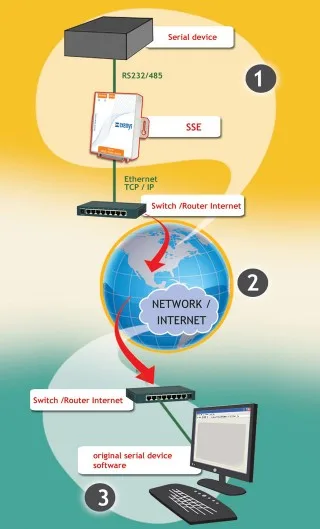

The COM Port Redirector can be used in conjunction with SSE232 converters to provide a means to transfer data from an RS232, RS422 or RS485 serial port via a TCP/IP data packet to a remote PC over the Internet. The software will create a virtual COM port on the remote PC that connects directly to the required SSE232 converter and on to the RS232. RS422 or RS485 device on site. This will create a transparent serial connection that allows you to use the standard device software on the remote PC to control your device.
This software is compatible with a wide range of TCP/IP based serial servers and supports advanced protocols as well as highly configurable virtual COM ports.
On the client computer running Serial/IP
At the remote location
The Serial/IP Redirector — Version 4.9.11
| Extensive Platform Support | › Windows 10/8/7/Vista/XP/2012/2008/2003/2000 › Terminal Services, Citrix Metaframe › Native and virtual platforms, including Virtual Server and VMware › 32-bit or 64-bit version automatically installs |
| Scalable, Fast, Flexible | › Up to 4,096 virtual COM ports for large applications › Entire data path is at kernel level, including networking and SSL › Low latency, no mode/context switch overhead of a Windows service › Always available, user login not required › Both outbound and inbound connections |
| Works with your choice of TCP/IP Serial Servers |
› Supports COM Port Control Protocol (RFC 2217), Telnet, raw TCP › Does not use proprietary TCP/IP protocols › Configurable to detect/respond to any server login prompt |
| Easy to Configure | › Verifies access to server and supported TCP/IP protocols › Recommends/sets optimal redirector settings › Can replicate settings across any/all virtual COM ports › Manages IP routing table to maintain server access |
| Transparent to Applications | › Extends server connection for COM port hand-off › Automatically restores interrupted network connections › Synchronizes COM port open with server ready condition › Optionally throttles data rate to COM port settings |
| Secure | › Automatically logs in to servers, using multiple credential sources › Supports SSL/TLS connections using OpenSSL › Configurable for proxy servers › Settings and trace logs can be restricted to Administrators |
| Deployable | › Installs interactively or via command line › Supports unattended command line install with privilege elevation › Uses DNS to resolve hostnames of servers › Configuration snapshot utility helps replicate settings during install › User-defined presets allow quick/controlled reconfiguration › ActiveX interface supports run-time reconfiguration |
Software is available as a free download with a free 30 days trial by clicking the image below. After the trial period, a licence key will be required to continue using the software. This can be purchased from Omni Instruments Ltd using the parts listed below.
SII4R1
£97.76
SII4R2
£200.57
SII4R4
£279.20
SII4R8
£500.94
SII4R16
£945.44
