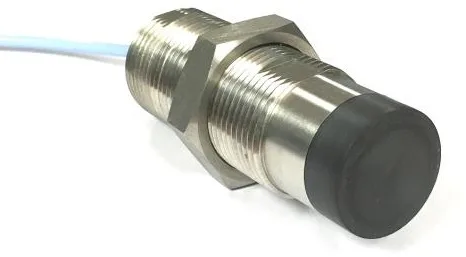

The Senturion XPR12 proximity probe system is an 25mm tip proximity sensor that uses eddy current principle to measure distance up to 12mm with resolution of a few micrometers. It is designed for monitoring targets twice the probe tip diameter, even in a harsh environments (up to 180°C). The system includes a driver unit with a 5, 7, or 9m extension cable. The cable system incorporates snap lock connectors and double screened cable for easy installation and high immunity to interference.
The Senturion XPR08 proximity probe system is a type of proximity sensor that uses the eddy current principle to measure the distance between the probe and a target. The probe has a 20mm tip that is made of a conductive material. When the probe is brought close to the target, an eddy current is induced in the target material. The strength of the eddy current is proportional to the distance between the probe and the target. The driver unit converts the eddy current signal into a voltage output that is proportional to the distance.
The XPR08 proximity probe system is designed for installations where there is a large target and clear readings are required. It has a range of up to 8mm and a nominal sensitivity of 1.97 mV/µm. The system is also designed for harsh environments and can operate up to 180°C.
| Measurement Range: | 12.0mm. Linear Range 0.63 to 12.7mm |
| Linearity of Full Scale: | ±1% -1.75 to -17.5V |
| Sensitivity: | 1.38mV (35mV/mil) ±1% |
| Resolution: | <0.003mm |
| Available System Lengths: | 5m, 7m or 9m. |
| Frequency Response: | DC to 5kHz |
| Probe Tip Diameter: | 25.0mm |
| Probe Tip Material: | PPS 40% Glass Filled |
| Probe Body Material: | 303 Stainless Steel |
| Probe Body Format: | Straight Type |
| Cable Type: | Triaxial 75Ohm Coaxial, FEP Outer Jacket 3.2mm diameter |
| Armoured Option: | Convuluted Stainless Steel 6.4mm diameter |
| Operating Temperature: | -30 to +180°C |
| Minimum Target Diameter: | 2 x Probe Tip Diameter |
| Connector: | Female Miniature Coaxial |
| Linear Voltage Range: | -1 to -17.5V for 0.63mm to 12.7mm |
| System Length Indication: | Green LED Lamp |
| Power Supply Range: | -16vDC to -28vDC (1.2V above output voltage) |
| Power Consumption: | 3mA typ. Max 7mA |
| Sensor Connector Type: | Self Locking Miniature Male Coaxial |
| Monitor Connector Type: | 3.5mm Audio Jack |
| Mounting: | DIN Rail or Plate |
| Weight | 250g |
| Operating Temperature: | -30 to +90°C |
Pricing for the XPR12 are only available on request. Please contact us for a quotation, [email protected]. Options are shown on the product datasheet.
