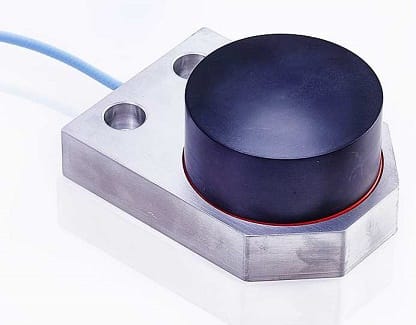

The Senturion XPD25 Proximity probe system with a disc mount proximity sensor with a 55.0mm diameter. The probe uses eddy current principle to measure distance up to 25.0mm with resolution of less than 0.003mm. It is designed for monitoring targets from as little as 50mm, even in a harsh environments (up to 180°C). The system includes a driver unit with a 5, 7, or 9m extension cable. The cable system incorporates snap lock connectors and double screened cable for easy installation and high immunity to interference.
The Senturion XPD25 proximity probe system is a type of proximity sensor that uses the eddy current principle to measure the distance between the probe and a target. The XPD25 is a disc mount probe has a 55mm tip that is made of a conductive material. When the probe is brought close to the target, an eddy current is induced in the target material. The strength of the eddy current is proportional to the distance between the probe and the target. The driver unit converts the eddy current signal into a voltage output that is proportional to the distance.
The XPD25 proximity probe system is designed for installations where there a flat disc probe is preferred to the long threaded probes. It has a range of up to 25mm and a nominal sensitivity of 0.63V/mm. The system is also designed for harsh environments and can operate up to 180°C.
| Measurement Range: | 25.0mm. Linear Range 1.26 to 26.7mm |
| Linearity of Full Scale: | ±1% -2 to -18V |
| Sensitivity: | 0.63V/mm (16mV/mil) ±1% |
| Resolution: | <0.003mm |
| Available System Lengths: | 5m, 7m or 9m. |
| Frequency Response: | DC to 5kHz |
| Probe Tip Diameter: | 55.0mm |
| Probe Tip Material: | PPS 40% Glass Filled |
| Probe Body Material: | 303 Stainless Steel |
| Probe Body Format: | Disc Type |
| Cable Type: | Triaxial 75Ohm Coaxial, FEP Outer Jacket 3.2mm diameter |
| Armoured Option: | Convuluted Stainless Steel 6.4mm diameter |
| Operating Temperature: | -30 to +180°C |
| Minimum Target Diameter: | 2 x Probe Tip Diameter |
| Connector: | Female Miniature Coaxial |
| Linear Voltage Range: | -1 to -18.0V for 1.26mm to 26.7mm |
| System Length Indication: | Green LED Lamp |
| Power Supply Range: | -16vDC to -28vDC (1.2V above output voltage) |
| Power Consumption: | 3mA typ. Max 7mA |
| Sensor Connector Type: | Self Locking Miniature Male Coaxial |
| Monitor Connector Type: | 3.5mm Audio Jack |
| Mounting: | DIN Rail or Plate |
| Weight | 250g |
| Operating Temperature: | -30 to +90°C |
Pricing for the XPD25 are only available on request. Please contact us for a quotation, info@omni.uk.com. Options are shown on the product datasheet.
