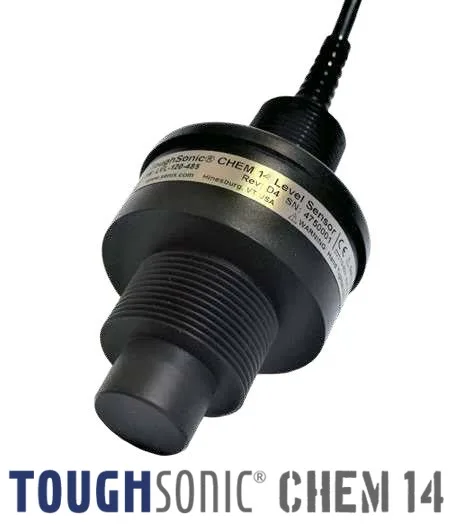

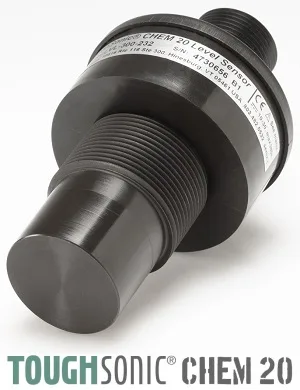

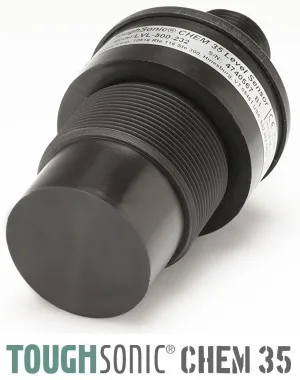

The ToughSonic CHEM LVL sensors are designed for liquid level measurements in corrosive chemical environments. The LVL sensors use a non-contact, ultrasonic signal to measure distances up to 35 ft (10.7m). Units are fully submersible, chemically and shock resistant with a PVDF housing and fully sealed and potted electronics. The ToughSonic CHEM sensors have scaleable 4-20mA and 0-10V analogue outputs for accurate level and distance measurements and PNP/NPN switching outputs for alarming or control of pumps and valves. Groups of sensors can be sychronised to prevent mutual interference and up to 32 RS485 units can be used in a single addressable network using the SYNC function.
The ToughSonic CHEM sensors use ultrasonic sound waves to measure distances through air. This technology has distinct advantages over mechanical, optical and radar technologies. Ultrasonic sound waves are unaffected by ambient light, target colour, transparency or reflectivity and the target area can be much wider than optical sensor allowing small and large objects to be easily detected. The ultrasound waves are non-contact, which last longer and require less maintenance than contact sensors that are more prone to corrosion, scaling and coating.
 |
 |
 |
|
| Optimal Range |
10 Feet (3m) | 13.3 Feet (4m) |
25 Feet (7.6m) |
| Max Range | 14 Feet (4.3m) | 20 Feet (6.1m) | 35 Feet (10.7m) |
| Lower Mounting | 1½” NPT Thread |
1½” NPT/BSP Universal Thread |
2″ NPT/BSP Universal Thread |
| Upper Mounting | 1″ NPT thread (0.94″ long) | ||
| Outputs | 5 Simultaneous outputs plus serial data |
||
| Electrical Connection |
2m 9-core cable |
||
| Power Supply | 10-30vDC, typical 24vDC. Sensitivity reduced below 15vDC & Min 15vDC for 0-10V output. | ||
| Housing | Sealed PVDF (Kynar) Housing, epoxy potted and sealed | ||
| Operating Environment | -40 to +70°C, 0-100%RH. | ||
| Protection | IP68, NEMA-4x, NEMA-6P | ||
The ToughSonic CHEM sensors are designed for liquid level measurements in corrosive chemical environments, but it is also an excellent choice for benign materials as well. It is fully submersible, chemical and shock resistant with a sealed PVDF housing. The SenixView software allows the units to be easily rescaled, configured, cloned, addressed and synchronised with other sensors. Simultaneous outputs are available in programmable 4-20mA or 0-10V analogue outputs and PNP or NPN switches (configurable as sinking or sourcing). The RS485 serial output can link to an addressable network using the Modbus protocol.
LVL-140-232
£597.65
LVL-140-485
£597.65
LVL-300-232
£644.89
LVL-300-485
£644.89
LVL-500-232
£720.49
