SCA Series Inclinometers

SCA Series Inclinometers

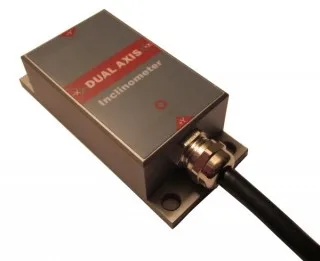

The SCA Series inclinometer are industrial grade inclinometers with options for voltage or current analog and serial data outputs. The SCA inclinometers are available in a rugged industrial enclosure, or as an OEM board for installation into your own equipment or enclosure. Accuracy up to 0.02, fast angle response of 20Hz and a long term stability of less than 0.02. The aluminum casing is waterproof and makes installation easy.

Need help finding the right product?

CONTACT US

Description

Specifications

  • Range:
    • +/- 10°
    • +/- 15°
    • +/- 30°
    • +/- 45°
    • +/- 60°
    • +/- 90°
  • Resolution: 0.01°
  • Long Term Stability
    • <0.02 (up to 15°)
    • <0.05 (30° & 60°)
    • <0.1 (90°)
  • Output Analog: 4-20mA – 0° = 8mA
  • Output Serial: TTL, RS485 or RS422
  • Supply: 9-36V DC
  • Frequency Response: 18Hz
  • Cable: Flying Lead 100cm
  • Operating Temperature: -40 to +85°C
  • Shock Rating:

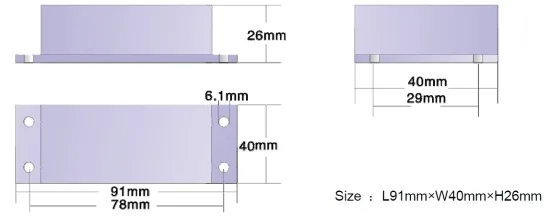

  • Size: 91mm x 40mm x 26mm
  • Case: Aluminium Oxide
  • Weight: 120g
