Description
Features
- Solid State Weather Station
- Data files in CSV format
- Battery powered – life dependent on logging rate
- Rugged weatherproof case
- Simple to deploy
- Wind Speed
- Wind Direction
- Additional sensors available:
- Temperature
- Humidity
- Rainfall
- Solar Radiation
- Barometric Pressure
- Available for short-term hire or built to order for purchase

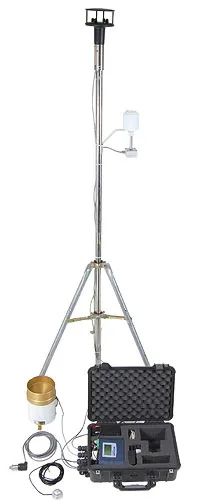

The RWS-07 Portable Weather Station is shown here assembled with sensors for windspeed and direction, and optional sensors for temperature and humidity, solar radiation, rainfall, and barometric pressure.
Optional Sensors
Solar Irradiance
The SP Lite 2 is a simple, low cost pyranometer for routine measurements of solar radiation. The unit has been designed to be used in all weather conditions with minimal maintenance. The SP Lite 2 features a silicon photo-diode detector with a conical diffuser to provide a full 180° field of view and allow rain to run off. The photo-diode does limit the spectral range, 400-1100nm, but this provides a similar spectral response to photovoltaic solar cells.
Measurement Range: | +2000Wm² |
Resolution: | 100µV/Wm² |
Units: | Wm² |
Barometric Pressure
The temperature and humidity sensor is a single instruments supplied mounted into a small Stevenson screen, designed to protect the sensor against error-producing solar radiation and precipitation, plus the discs prevent any wind effects on the readings. Screen can be secured to the tripod, or with fixing screws to a surface.
Measurement Range: | 750-1250mBar |
Accuracy: | 0.1% |
Units: | mBar |
Temperature & Humidity
The temperature and humidity sensor is a single instruments supplied mounted into a small Stevenson screen, designed to protect the sensor against error-producing solar radiation and precipitation, plus the discs prevent any wind effects on the readings. Screen can be secured to the tripod, or with fixing screws to a surface.
Temperature | Relative Humidity | |
Measurement Range: | -40 to +60°C | 0-100%RH |
Accuracy: | ±0.5°C | ±1.5%RH |
Units: | °C | %RH |
Rainfall

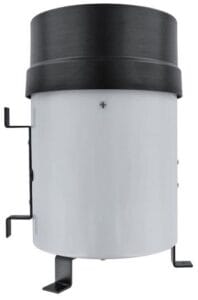

The TR-525 rain gauge is a freestanding tipping rain bucket used to measure precipitation totals with a pulse output for rainfall totals. The 6″ open top funnel allows for a 0.01″ measurement unit (convertible to mm). The rain bucket is free standing but needs secured to the surface to prevent it being knocked over.
If you are interested in hiring one of these units, please contact us to discuss your requirements.
