Complete Remote Weather Station with a GSM/GPRS logger and wind speed and direction sensor. This weather station is based around the GRD3305-XF datalogger, which will send the data directly to a web server running the Middleware software, or our own M2M web interface. Data is sent in real-time to the server and our M2M web interface will provide graphical and chart views, e-mail & SMS alarming and allow data to be downloaded to a CSV file. Each base weather station is supplied with a 50W solar panel, charger and a back up battery capable of providing up to 2 week backup. The weather station can be expanded to cover additional parameters, including: barometric pressure; air temperature & relative humidity; solar radiation; soil temperature; water depth; rainfall, etc. The included solar panel and battery back up will provide c140mA to cover all the sensor options with a 2 week battery back up.
The RWS-05 combines a GRD3305-XF GSM/GPRS datalogger with the WindSonic anemometer to provide a very adaptable base weather station in an ABS enclosure with a 50W solar panel and 55Ah AGM battery. This set up will provide a remote weather station with a constant power supply of 140mA and up to 2 weeks battery back up.
Features
The GRD datalogger has an internal memory of 50,000 readings that will allow the unit to continue logging in the event that the connection to the server is lost. This could be due to a regular maintenance schedule or emergency repairs.
The GRD logger will interface with a web server running the Middleware software and create a MySQL database on the server that can be used to interface with your own systems. You can also use our M2M web interface to provide an online interface that can be access from anywhere in the world over the internet. This interface allows you to view the latest data, historical data, graphs of collected readings, generate alarms or download the collected data for further analysis.
To view our M2M Web Interface publishing data from a range of remote data acquisition devices
click here
Login details:
User name: omniguest
Password: preview
Additional sensors can be fitted to provide various different parameters as required to fit virtually any remote logging application. Sensors can be added to provide temperature, relative humidity, barometric pressure, water depth, water quality, solar radiation, rain fall, etc. The most popular additional sensors are available below.
Weather stations can be augmented and tailored to your specific requirements and can be made to fit any requirements you may have. If you have any specific requirements that you would like to discuss, please contact us directly to discuss your requirements and get a quotation.
RWS-05
£2,484.48

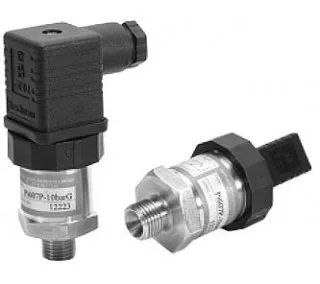

RWS-BARO-420
£169.00
RWS-SOL-SPLITE-AMP
£556.00
M-TPB
£155.82
Need help with your products or have a question for us on our custom systems? Use the form below to send us a message and our experts will be in touch to help.
