Description

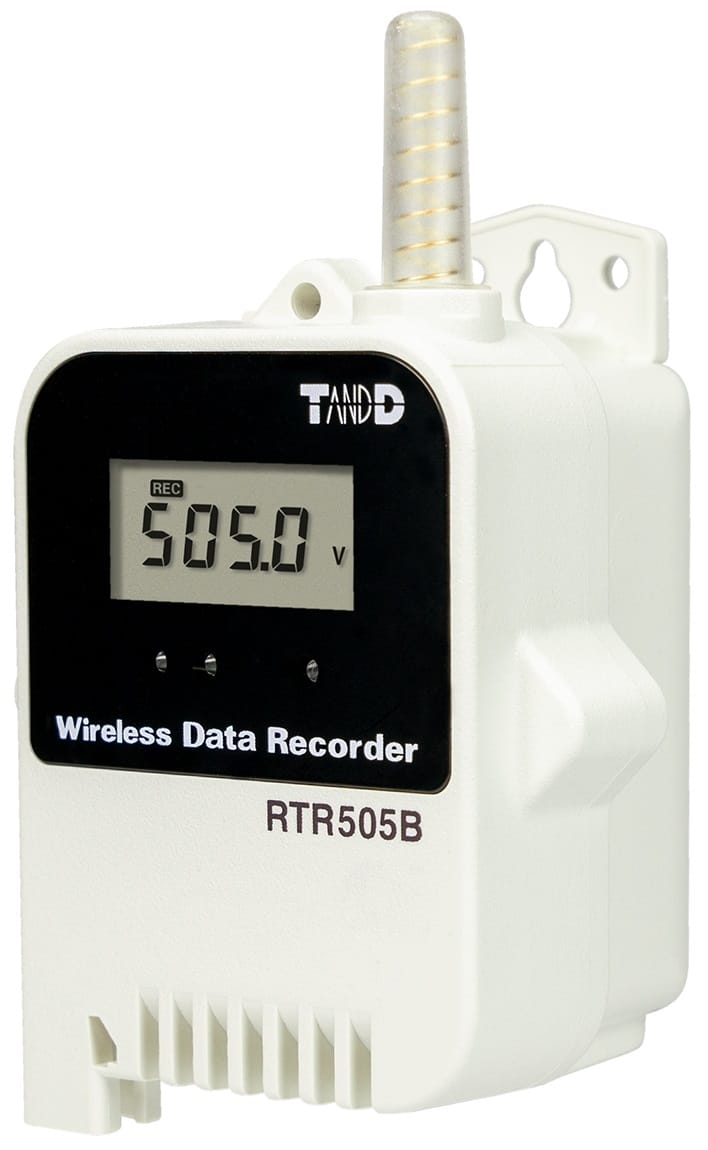

The RTR505BL can be used to monitor various parameters using the appropriate module. Everything from: Thermocouples or RTD Temperature sensors; Voltage or Current signals; or Pulse inputs can be monitored with the correct module fitted to the RTR505BL data logger. The standard RTR505B has a 10 months battery life, whilst the RTR505BL can be up to 4 years. Making it much easier to schedule changing the batteries to ensure no data is lost. The RTR505BL isn’t supplied with the battery and this should be purchased separately.
Specifications
| Measurements | Temperature | Voltage | 4-20mA | Pulse Count | |
| Module | TCM-3010 | PTM-3010 | VIM-3010 | AIM-3010 | PIC-3150 |
| Sensor | Thermocouples, Type K, J, T, S | PT100, PT1000 | 0-22V | 0 to 20mA | Contact Input, Max 27V |
| Further Information | Available on the specific sensors specifications. | ||||
| Logging Capacity | 16,000 readings | ||||
| Recording Interval | Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min. | ||||
| Recording Mode (*2) | Endless (Overwrite oldest data when capacity is full) or One Time (Stop recording when capacity is full) | ||||
| LCD Display Items | Measurements (alternating display for multiple channel devices), Recording Status, Battery Life Warning, etc. |
||||
| Communication Interfaces (*3) |
Short Range Wireless Communication | ||||
| US Model: Frequency Range: 902 to 928 MHz, RF Power: 7 mW Transmission Range: Approx. 150 meters (500 ft) if direct and unobstructed |
|||||
| EU Model: Frequency Range: 869.7 to 870 MHz, RF Power: 5 mW Transmission Range: Approx. 150 meters (500 ft) if direct and unobstructed |
|||||
| Bluetooth 4.2 (Bluetooth Low Energy) (*4) Optical Communication |
|||||
| Power | L Type: Large Capacity Battery Kit RTR-500B1 (*5) AC Adaptor used with External Power Adaptor Kit RTR-500A2 |
||||
| Battery Life (*6) | Approx. 4 years | ||||
| Dimensions | H 62 mm x W 47 mm x D 19 mm (excluding protrusions and sensor) | ||||
| Antenna length: 24 mm | |||||
| Weight | Approx. 50 g | ||||
| Operating Environment | -40 to 80°C -30 to 80°C during wireless communication |
||||
| Waterproof Capacity | IP64: Splash proof (rated for use in daily life) (*7) | ||||
| Included Items | Large Capacity Battery Kit RTR-500B1, Manual Set (Warranty included) | ||||
| Compatible Base Units | RTR500BC, RTR500BW, RTR500BM & Other devices (*8) | ||||
*1: Measurement item depends on the input module (sold separately).
*2: Only “Endless” is available when using the RTR500BW, RTR500BM, RTR-500NW/AW or RTR-500MBS-A as a Base Unit.
*3: There are US models and EU models in the RTR500B Series. They cannot be used together because they have different wireless specifications.
*4: Bluetooth is available when using the RTR500BW or RTR500BM as a Base Unit and making device settings in the mobile app (T&D 500B Utility).
*5: When using RTR-500B1 it is necessary to purchase Lithium Battery (LS26500). For details, contact your local authorized distributor.
*6: The listed battery life is based on the following usage conditions: Recording at 10 second (or longer) intervals, Current Readings Transmission every 10 minutes, and Recorded Data Transmission once a day. Battery life also varies depending on ambient temperature, radio environment, frequency of communication, etc.
*7: Input module (sold separately) is not water resistant.
*8: Also compatible with the following discontinued products: RTR-500DC, RTR-500, RTR-500NW/AW, and RTR-500MBS-A. Please refer to “Compatibility Info for RTR500B and RTR-500 Series”
