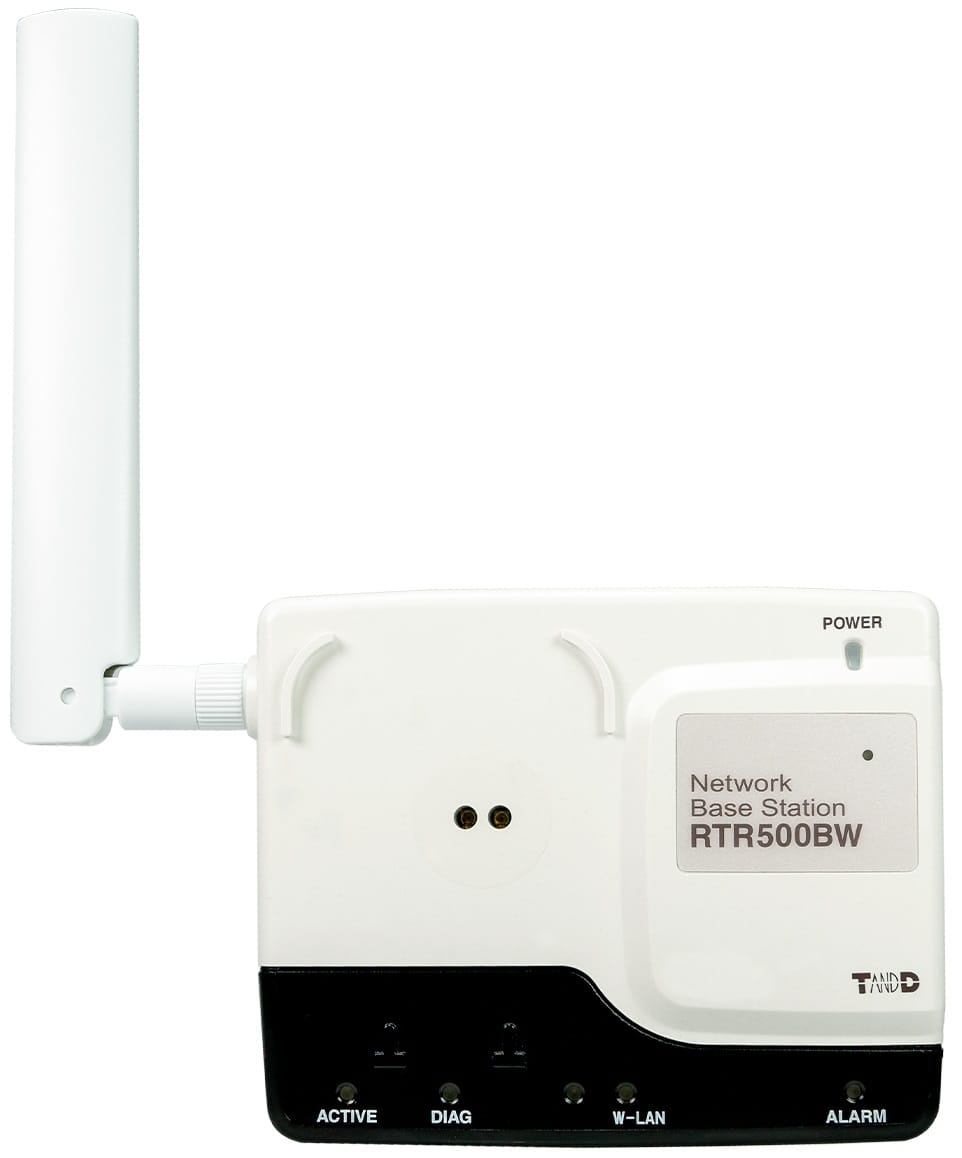

RTR500BW Network Base Station/Repeater with RJ45 Wired, or Wireless, LAN Connection, and USB 2.0 connection for configuration. FTP and email alarm software supplied, but will require PC with Internet access and SMTP server to provide emails. Downloaded data can be sent to email or server at scheduled intervals, or under alarm conditions. RTR500BW can be used as a remote unit for up to 50 units, or as a repeater for up to 10 units per group and up to 4 groups. EU Frequency Range 869.7 to 870MHz @ 5mW RF Power. Range up to 150m line of sight. Unit can be powered via Ethernet (PoE) or AC mains adaptor. Unit will also allow mobile devices to make settings changes via Bluetooth or Cloud via Android or iOS apps.
£403.99
RTR500BW is a wireless data collector (Base Unit) that collects recorded data from data loggers (Remote Units) using short range wireless communication. Connected to a Wireless Local Area Network or via Wired via RJ45 connector. USB 2.0 connection is also available for direct to a PC connection.
| Compatible Devices | Remote Units | RTR500B Series (RTR501B/502B/503B/505B/507B) Including L Type RTR-500 Series (RTR-574/576) Including S Type RTR-600 Series (RTR-602S/602L/602ES/602EL) (*1) |
| Repeaters | RTR500BC | |
| Other devices (*2) | ||
| Maximum Number of Registrations | Remote Units | 50 units |
| Repeaters | 10 units x 4 groups | |
| Communication Interfaces (*3) | ||
| Short Range Wireless Communication | ||
| US Model: | Frequency Range: 902 to 928 MHz RF Power: 7 mW Transmission Range: About 150 meters (500 ft) if unobstructed and direct |
|
| EU Model: | Frequency Range: 869.7 to 870 MHz RF Power: 5 mW Transmission Range: About 150 meters if unobstructed and direct |
|
| Wired LAN (RJ45 connector 100 Base-TX/10 Base-T) Wireless LAN (IEEE 802.11 a/b/g/n, WEP (128bit) / WPA-PSK(TKIP) / WPA2-PSK (AES)) Bluetooth 4.2 (Bluetooth Low Energy) USB 2.0 (Mini-B connector) Optical Communication (proprietary protocol) |
||
| Communication Time | Data Download Time (for 16,000 readings) Via wireless communication: Approx 2 minutes An additional 30 seconds should be added for each Repeater. (*5) |
|
| External Output Terminal | PhotoMOS Relay Output OFF-State Voltage: AC/DC 50 V or less ON-State Current: 0.1 A or less ON-State Resistance: 35 Ω |
|
| Communication Protocol (*6) | HTTP, HTTPS, FTP, SNTP, DHCP, DNS | |
| Power | AC Adaptor (AD-05A4 or AD-05C1) PoE (IEEE 802.3af) |
|
| Dimension | H 83 mm x W 102 mm x D 28 mm (excluding antenna) Antenna Length: 115 mm |
|
| Weight | Approx. 130 g | |
| Operating Environment | Temperature: -10 to 60 °C Humidity: 90% RH or less (no condensation) |
|
| Included Items | Antenna CSR-0011, USB Mini-B Cable US-15C, AC Adaptor AD-05A4 or AD-05C1, Registration Code Label, Manual Set (Warranty Included) | |
*1: RTR-500 Series and RTR-600 Series (US Model only) do not have Bluetooth capability.
*2: Also compatible with the following discontinued products: RTR-501/502/503/507S/505, RTR-500, and RTR-601-110/130/E10/E30. Please refer to “Compatibility Info for RTR500B and RTR-500 Series” ( https://tandd.com/information/compatible-rtr500b-loggers.html ).
*3: There are US models and EU models in the RTR500B Series. They cannot be used together because they have different wireless specifications.
*4: Transmission range between RTR500BW and RTR-600 Series loggers is about 50 meters.
*5: When using RTR500BC as Repeater. Depending upon conditions it may take up to an additional 2 minutes.
*6: Client Function. Communication via proxy is not supported.
The specifications listed above are subject to change without notice.
