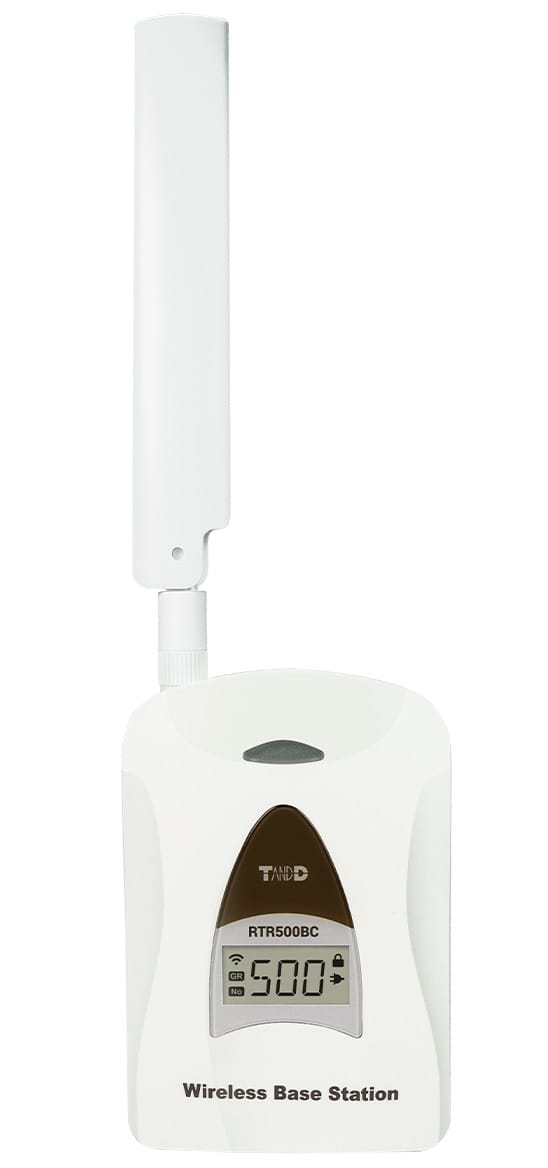

RTR500BC Base Station/Repeater with USB 2.0 connection. FTP and email alarm software supplied, but will require PC with Internet access and SMTP server to provide emails. Downloaded data can be sent to email or server at scheduled intervals, or under alarm conditions. RTR500BC can be used as a remote unit for up to 32 units per group, or as a repeater for up to 30 units per group and up to 20 groups. EU Frequency Range 869.7 to 870MHz @ 5mW RF Power. Range up to 150m line of sight. Unit can be powered via USB, 2 x AA Alkaline Batteries or AC mains adaptor.
£188.48
RTR500BC is a wireless data collector (Base Unit) that collects recorded data from data loggers (Remote Units) using short range wireless communication. Connected to a PC via USB and with our Windows software, it enables data download and transfer, real-time monitoring as well as monitoring for warnings. It can also be used as a wireless repeater for our RTR500B/RTR-500 Series.
| Compatible Devices | Remote Units | RTR500B Series (RTR501B/502B/503B/505B/507B) Including L Type RTR-500 Series (RTR-574/576) Including S Type RTR-600 Series (RTR-602S/602L/602ES/602EL) (*1) |
| Repeaters | RTR500BC | |
| Other devices (*2) | ||
| Maximum Number of Registrations | Remote Units | 32 units (*3) x 20 groups |
| Repeaters | 30 units x 20 groups | |
| Communication Interfaces (*4) | ||
| Short Range Wireless Communication | ||
| US Model: | Frequency Range: 902 to 928 MHz RF Power: 7 mW Transmission Range: About 150 meters (500 ft) if unobstructed and direct |
|
| EU Model: | Frequency Range: 869.7 to 870 MHz RF Power: 5 mW Transmission Range: About 150 meters if unobstructed and direct |
|
| Bluetooth 4.2 (Bluetooth Low Energy) (*5) USB 2.0 (Mini-B connector) Optical Communication (proprietary protocol) Serial Communication (*6) |
||
| Communication Time | Data Download Time (for 16,000 readings) Via wireless communication: Approx 2 minutes The same amount of time should be added for each Repeater. |
|
| Communication Protocol (*7) | SMTP (TLS 1.2 supported), FTP | |
| LCD Display Items | Configuration Modes, Communication Status, Battery Life Warning, etc. | |
| Power (*8) | USB Bus Power, AA Alkaline Battery LR6 x 2, AC Adaptor (AD-06A1 or AD-06C1), External Battery (DC 9-38V) with the Connection Adaptor (BC-0204) |
|
| Battery Life (*9) | As a Repeater: Approx 6 months (When downloading full data once a day from one Remote Unit with one Repeater) | |
| Dimension | H 96 mm x W 65.8 mm x D 24.4 mm (excluding antenna) Antenna Length: 135 mm |
|
| Weight | Approx. 80 g | |
| Operating Environment | Temperature: -10 to 60 °C (when using AA batteries) / -30 to 60 °C (when using AC adaptor) Humidity: 90% RH or less (no condensation) |
|
| Included Items | Antenna CSR-0011, USB Mini-B Cable US-15C, Manual Set (Warranty Included) | |
*1: Customers wishing to use the RTR500BC as a Base Unit in conjunction with the RTR-600 series devices, please contact your local distributor for the communications protocol specifications to write your own software.
*2: Also compatible with the following discontinued products: RTR-501/502/503/507S/505, RTR-500, and RTR-601-110/130/E10/E30. Please refer to “Compatibility Info for RTR500B and RTR-500 Series” (https://tandd.com/information/compatible-rtr500b-loggers.html).
*3: For RTR-574 and RTR-576, registration of one unit will be counted as two units.
*4: There are US models and EU models in the RTR500B Series. They cannot be used together because they have different wireless specifications.
*5: Bluetooth is available when using the RTR500BW or RTR500BM as a Base Unit and making device settings in the mobile app (T&D 500B Utility).
*6: Customers wishing to write their own software, please contact your local distributor for the serial communications protocol specifications (Note: Optional serial communication cable TR-07C is also required).
*7: Client Function. The protocol is implemented in the software application (RTR500BC for Windows).
*8: When using the RTR500BC as a Base Unit, it works on the USB bus power and it is not necessary to use another power source.
*9: Battery life depends on several factors, including ambient temperature, radio environment, frequency of communication, and quality of the battery being used. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual battery life.
The specifications listed above are subject to change without notice.

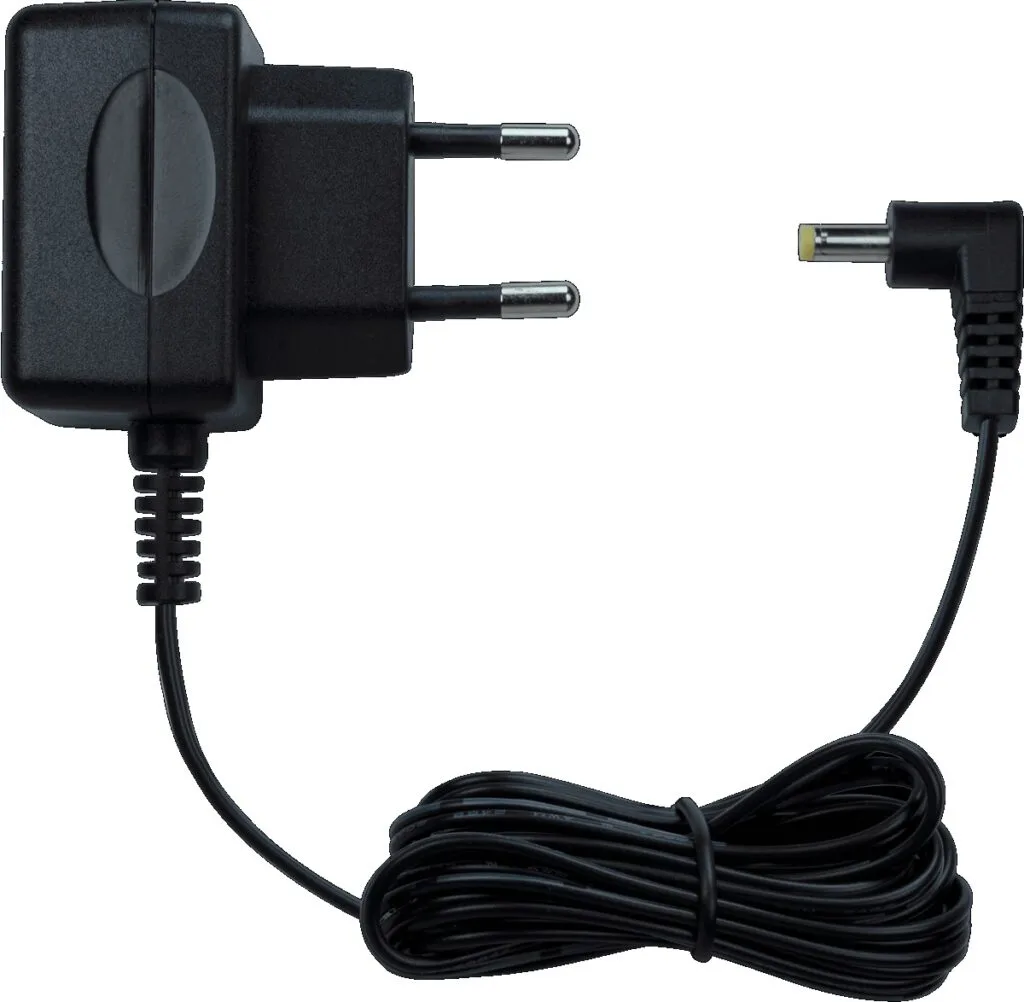

AD-06C1
£21.91
