Description

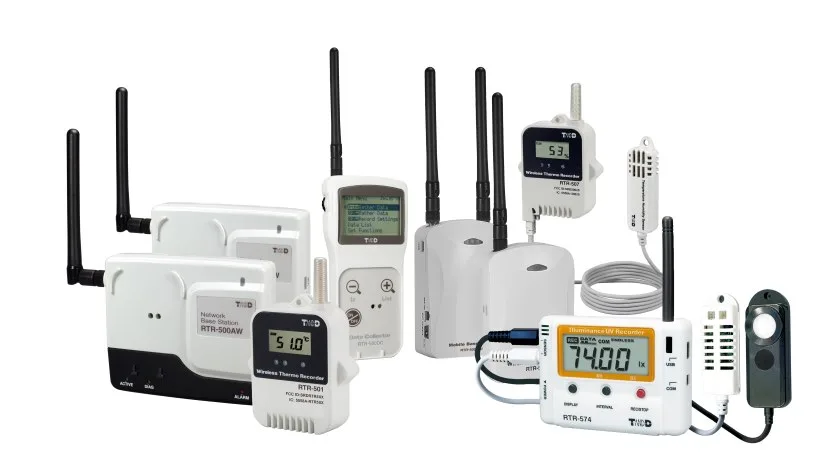

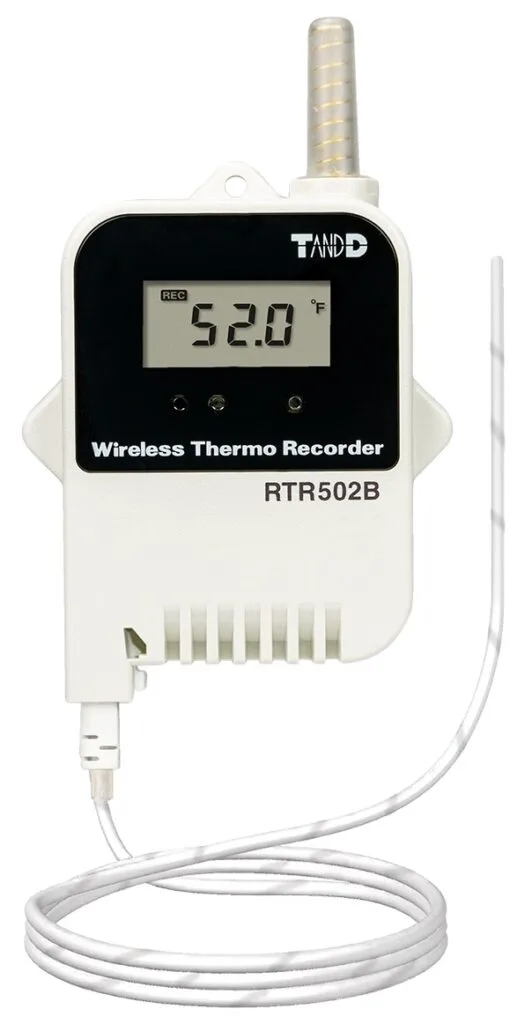

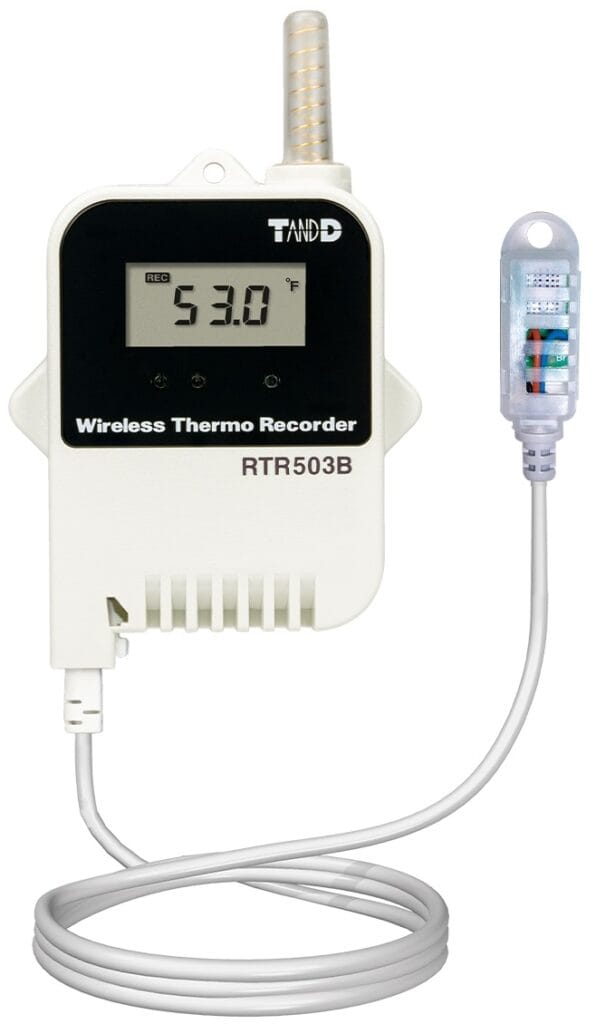

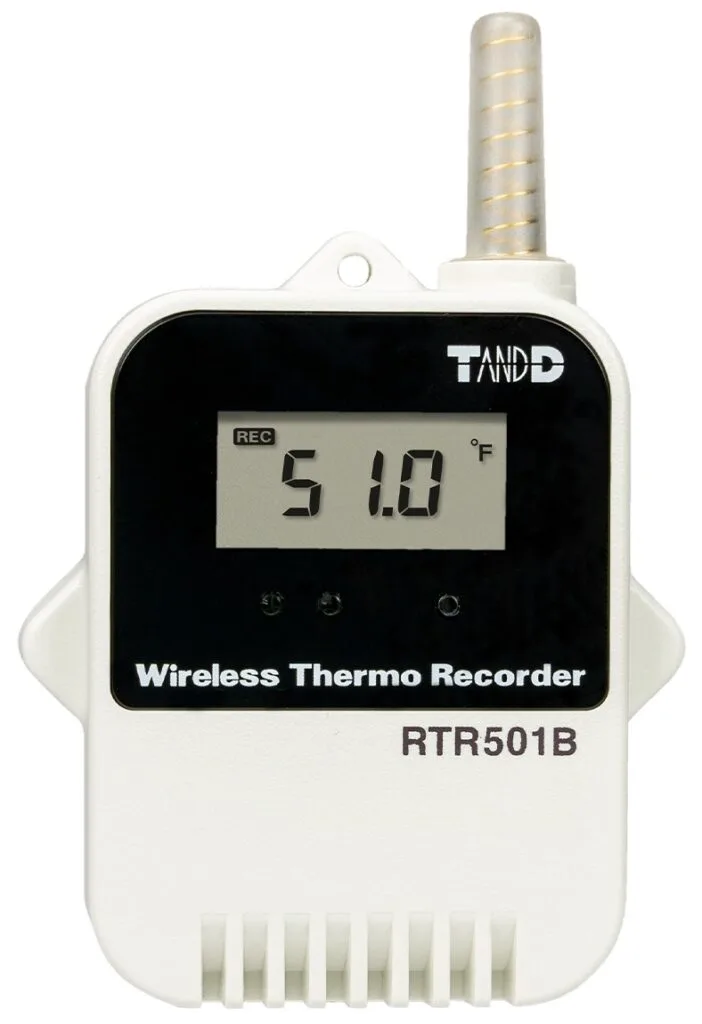

The RTR500B Series includes a wide variety of data loggers, designed to measure and record temperature, humidity, voltage, 4-20mA, pulse count, illuminance, UV or CO2. The loggers can be used as standalone devices, or with the base stations to enable wireless collection of recorded data.

Base Stations

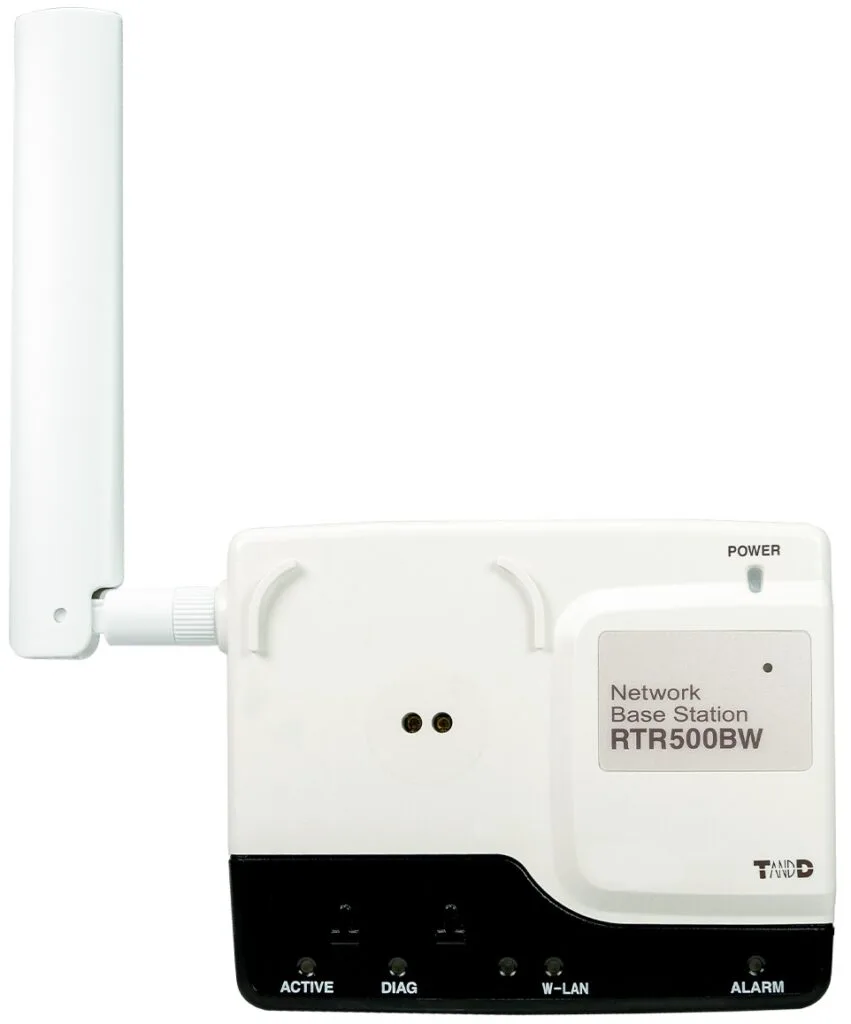

RTR500BW – Network Base Station/Repeater

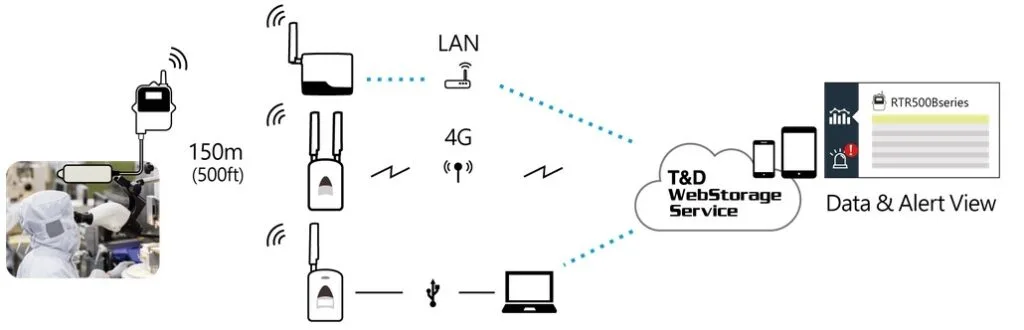

Suitable for use both hard wired Ethernet and wireless WiFi communications, the network connected base receiver is a stand along system that does not require the usage of a PC to communicate to the RTR data loggers. Computers that also have internet access can upload the data to a web portal, plus allows or Bluetooth connection. Can collect up to 10 units per group and up to 4 groups.

RTR-500BM – Mobile Base Station
For remote sites without PC’s or Internet access, the mobile base station uses GPRS mobile phone networks to transmit data from the RTR data loggers. Data can be emailed and sent FTP, while alarm messages can be sent via email or directly to a mobile phone via SMS text message. The base station also has a GPS input which makes it ideal for mobile locations, with live location stored and transmitted.

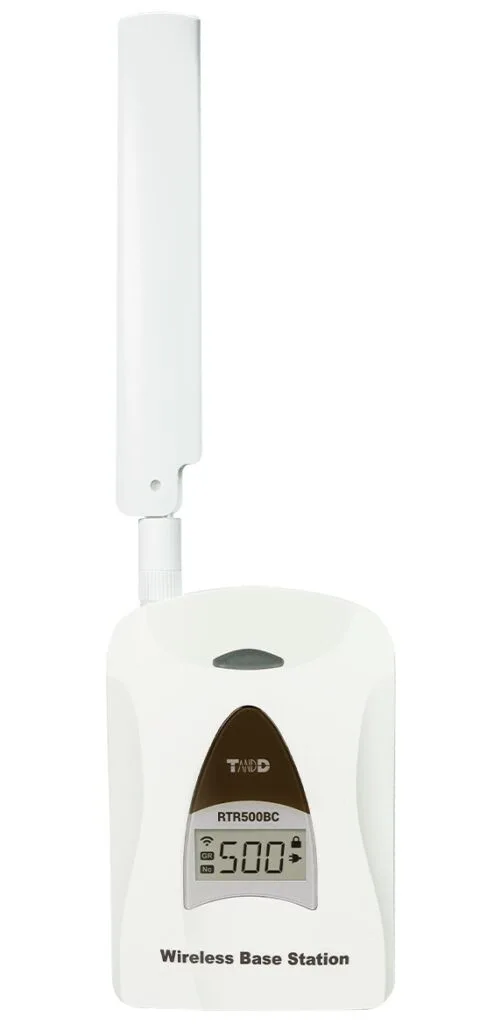

RTR-500BC – Wireless Base Station/Repeater
Suitable for use with a PC running the Windows Software. Allows scheduled data retrieval and re-transmission through email or FTP. Computers that also have internet access can upload the data to a web portal, plus Bluetooth connection. Can collect up to 32 units per group and up to 20 groups.
