Description

The RTR-576 is a three channel data logger designed to measure and record CO2 Concentrations, temperature and humidity. A contact output terminal is also available to connect external buzzers or lights to provide local on-site alarms or notification. The RTR-576 can be used to monitor and manage CO2 conditions in classrooms and greenhouses.

Specifications

Temperature-Humidity Sensor THA-3001
Measurement Channels Temperature 1ch Humidity 1ch
Sensor Thermistor Polymer Resistance
Measurement Units °C, °F %RH
Measurement Range 0 to 55°C 10 to 95%RH
Accuracy ±0.5°C ±5%RH at 25°C, 50%RH
Measurement Resolution 0.1°C 1%RH
Responsiveness Response Time (90%): Approx. 7 min.
CO2 Sensor Internal NDIR
Measurement Channels CO2 Concentration 1ch
Measurement Units ppm
Measurement Range 0 to 9,999ppm
Accuracy ±50ppm (+5% of reading) at 5,000ppm or less (*3)
Measurement Resolution Minimum of 1ppm
Responsiveness Response Time (90%): Approx 1 Minute
Logging Capacity 8,000 data sets (One data set consists of readings for all channels in that type of unit.)
Recording Interval Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec, or 1, 2, 5, 10, 15, 20, 30, 60 min.
Recording Mode (*4) Endless (Overwrite oldest data when capacity is full) or One Time (Stop recording when capacity is full)
LCD Display Items Measurements: Recording Status, Recording Mode, Battery Life Warning, etc.
Measurements: CO2 Concentration/Temperature/Humidity
Display Pattern: Alternating or Fixed display
Display Digits: Up to 4 digits
Communication
Interfaces (*5)		 Short Range Wireless Communication
US Model: Frequency Range: 902 to 928 MHz, RF Power: 7 mW
Transmission Range: Approx. 150 meters (500 ft) if direct and unobstructed
EU Model: Frequency Range: 869.7 to 870 MHz, RF Power: 5 mW
Transmission Range: Approx. 150 meters (500 ft) if direct and unobstructed
USB 2.0 (Mini-B connector)

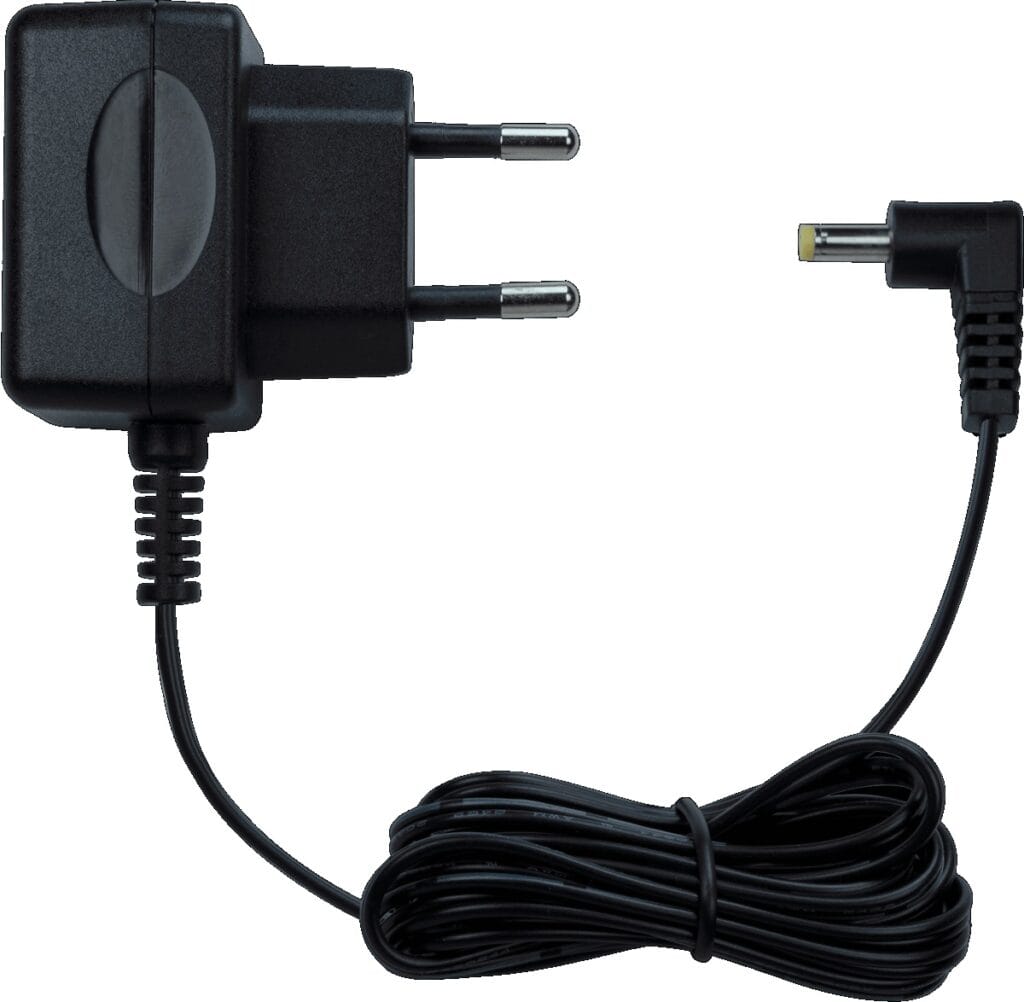

Power AC Adaptor AD-06A1 or AD-06C1, AA Alkaline Battery LR6 x 4
Battery Life (*7) Approx. 2 Days (Batteries only without AC adaptor
Dimensions H 96 mm x W 66 mm x D 46 mm (excluding protrusions)
Antenna Length: 60 mm
Weight Approx. 125 g
Operating Environment Temperature: 0 to 45°C, Humidity: 90%RH or less (no condensation)
Included Items AA Alkaline Battery LR6 x 4, AC Adaptor AD-06C1, USB Mini-B Cable US-15C, Temperature-Humidity Sensor THA-3001, Manual Set (Warranty Included)
Compatible Base Units RTR500BC, RTR500BW, RTR500BM
Other devices (*8)

*1: Make sure to use the data logger within the operating environment as listed in the specifications.
*2: When continually used in environments with temperatures above 60 °C, accuracy of humidity measurements will decrease over time. Also, humidity cannot be measured
at temperatures below -20 °C.
*3: Stated value is the measurement accuracy of the CO2 sensor when Auto Calibration is operating properly. A change in atmospheric pressure directly influences the reading of CO2, which can cause measurement errors; a decrease in pressure by 10 hPa results in a relative decrease in CO2 by 1.6 %. In such a case, we recommend carrying out the “Atmospheric Pressure Correction” function found in the software for the Base Unit.
*4: Only “Endless” is available when using the RTR500BW, RTR500BM, RTR-500NW/AW or RTR-500MBS-A as a Base Unit.
*5: There are US models and EU models in the RTR500B Series. They cannot be used together because they have different wireless specifications.
*6: In order to use the external alarm terminal, please purchase the optional alarm connection cable (AC0101).
*7: The listed battery life is based on the following usage conditions: Recording at 10 second (or longer) intervals, Current Readings Transmission every 10 minutes, and Recorded Data Transmission once a day. Battery life also varies depending on ambient temperature, radio environment, frequency of communication, etc.
*8: Also compatible with the following discontinued products: RTR-500DC, RTR-500, RTR-500NW/AW and RTR-500MBS-A.

The specifications listed above are subject to change without notice.
