RMS Acquisition Modules

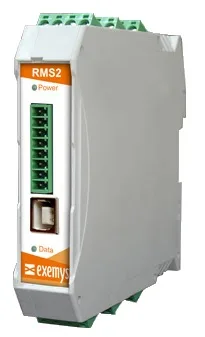

RMS2 Acquisition Module with Serial Communications

The RMS2 Modules are suitable for acquiring Voltage, Current, PT100 or Thermocouple inputs on a Modbus network. Each module can acquire inputs from up to 8 channels and convert the readings to a ModBus ASCII or Modbus RTU serial output. RMS2-AI collects 0-10V and 4-20mA analogue inputs, RMS2-PT will connect to 2- or 3-wire PT100 sensors, and the RMS-TC accepts Thermocouple inputs of types J, K, T, R, N, E, or S. Modules are DIN Rail mounted

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

RMS-PT - PT100 Acquisition Module

Description

The RMS2 modules allows for inputs to be collected from up to 8 sensors and read via Modbus ASCII or Modbus RTU Master device. The RME2 modules can be used to read values via Modbus TCP, Web Page HTTP, SNMP, CSV and XML.

Features

  • RMS2-A1 has 8 Configurable analog differential 12 bit inputs: 4-20mA, 0-10 Volt
  • RMS2-TC has 8 thermocouple inputs selectable J, K, T, R, N, E or S type
  • RMS2-PT has 8 PT100 inputs
  • Configurable Serial Protocol: Modbus ASCII/RTU slave.
  • Remote supervision of devices.
  • Wide range of power supply from 10 up to 30vDC.
  • Easy configuration.
  • Industrial pluggable terminal blocks.
  • DIN Rail mounting.

Applications

  • Analog sensors supervision.
  • Battery voltage monitoring.
  • Data acquisition general applications.
  • Remote monitoring systems.
  • PLC and SCADA systems.
  • Industrial automation.

Product

Ref

Price

Product Description

RMS2-AI-110-00-80-IA3-MB

£354.33

RMS2-AI Analogue Acquisition Module. The unit provides 8 Differential Input Channel suitable for 0-10V or 4-20mA inputs. An RS232 and RS485 isolated pluggable terminal blocks (Modbus RTU/ASCII Slave) plus USB port for configuration. DIN Rail mounted industrial enclosure with terminal blocks. Power supply: 10-30vDC, consumption 50mA @ 12vDC. Dimensions: 100 x 22.5 x 112mm. Operating Temperature: -15 to 65°C.
MORE INFO
Add to basket

RMS2-PT-110-00-80-IA3-MB

£411.97

RMS2-PT PT100 Acquisition Module. The unit provides 8 Differential Input Channel suitable for 2- or 3-wire PT100 temperature sensors. An RS232 and RS485 isolated pluggable terminal blocks (Modbus RTU/ASCII Slave) plus USB port for configuration. DIN Rail mounted industrial enclosure with terminal blocks. Power supply: 10-30vDC, consumption 50mA @ 12vDC. Dimensions: 100 x 22.5 x 112mm. Operating Temperature: -15 to 65°C.
MORE INFO
Add to basket

RMS2-TC-110-00-80-IA3-MB

£411.97

RMS2-TC Thermocouple Acquisition Module. The unit provides 8 Differential Input Channel suitable for Type J, K, T, R, N, E or S Thermocouples. An RS232 and RS485 isolated pluggable terminal blocks (Modbus RTU/ASCII Slave) plus USB port for configuration. DIN Rail mounted industrial enclosure with terminal blocks. Power supply: 10-30vDC, consumption 200mA @ 10vDC. Dimensions: 100 x 22.5 x 112mm. Operating Temperature: -15 to 65°C.
MORE INFO
Add to basket
