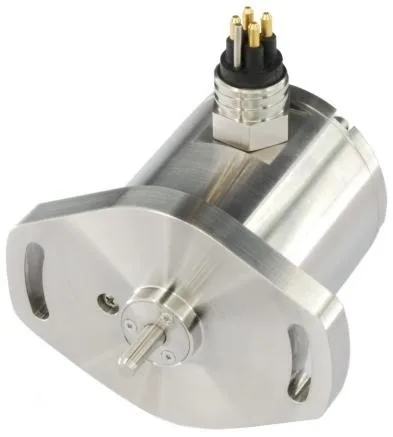

The S520 RIPS® (Rotary Inductive Position Sensor) is an affordable, durable, high-accuracy rotary position sensor designed for arduous underwater applications such as ROVs. The S520 will provide a linear output proportional to the rotary position. Each unit is supplied with the output calibrated to the angle required by the customer, any angle from 0-15° to 0-160° and with full EMC protection built in. The sensor is very rugged, being made of 316 stainless steel body and shaft with flange mounting for each installation. Environmental sealing is to IP68 350 Bar.
| Independent Linearity: | ≤ ± 0.25% FSO @ 20°C – up to 100° travel ≤ ± 0.1% FSO @ 20°C* available upon request. |
| *Sensors with calibrated travel up to 100° | |
| Temperature Coefficients: | < ± 0.01%/°C Gain & < ± 0.01%FS/°C Offset |
| Frequency Response: | > 10 kHz (-3dB) > 300 Hz (-3dB) 2 wire 4 to 20 mA |
| Resolution: | Infinite |
| Noise: | < 0.02% FSO |
| Torque: | <20mNm Static |
| Body Diameter: | 60mm, Flange 92mm |
| Body Length: | 70mm to mounting face |
| Shaft: | 15mm Ø 6mm |
For full mechanical details see drawing S520-11
| Operating: | -4°C to +50°C |
| Storage: | -4°C to +50°C |
| Sealing: | Sealed to 350 Bar |
| EMC Performance: | EN 61000-6-2 EN 61000-6-3 |
| Vibration: | IEC 68-2-6: 10 g |
| Shock: | IEC 68-2-29: 40 g |
| MTBF: | 350,000 hrs 40°C Gf |
