Description

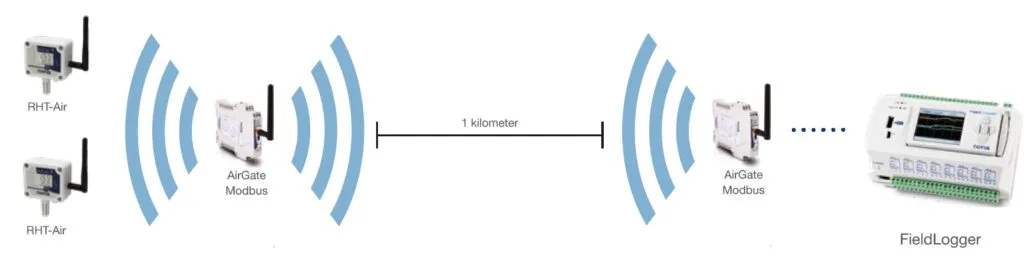

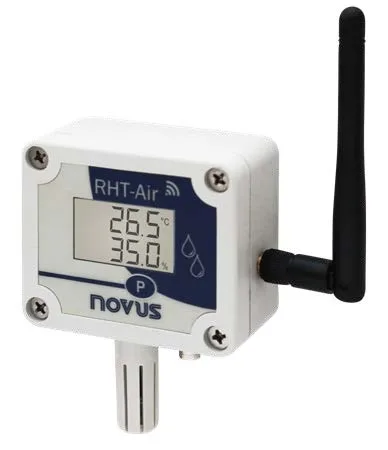

The RHT-AIR is a fully wireless solution for measuring temperature and humidity over long distances, allowing the configuration and reading of the parameters through the wireless network up to 1 km, bringing practicality and efficiency to the application. Units can be battery powered, or via 12-30vDC for continuous operation. Data can be collected by a central AirGate Modbus unit and relayed to a Fieldlogger or AirGate unit for connection to a remote Web server.
Features
- Long Range Wireless Transmission, up to 1Km
- Independent Wireless Network
- Large Battery Life (Up to 2 Years @ 10 min interval
- Easy Network Scalability
- Noise Immunity
Specifications
| Measurement Range | Temperature: -40 to 100°C (-40 to 212F) | Humidity: 0 to 100%RH |
| Measurement Accuracy | Temperature: ±0.4°C @ 25°C | ±3%RH @ 25°C (20 – 80%RH) |
| Measurement Resolution | Temperature: 0.1°C (14 bits – 16383 levels) | Humidity: 0.1% (12 bits – 4095 levels) |
| Interval between Updates | Configurable between 15 seconds and 10 minutes (600 seconds) | |
| Response Time | Temperature: 30 sec (air speed 1m/s) | Humidity: 8 sec (air speed 1m/s) |
| Display | LCD with 2 indications | |
| Advanced Functions | Battery Level, Dew Point Indication and Retransmission | |
| Communication Interface | NOVUS Air (IEEE 802.15.4) | |
| Power Supply | 12-30vDC or 3.6V Lithium Battery (OmniCel, ER14250HD model) | |
| Estimated Battery Life | Typical 2 years – 10 minutes update interval @ 25°C | |
| Dimensions | Box: 70 x 60 x 35mm Probe size: 39mm Antenna size: 105mm |
|
| Operating Conditions | -10°C to 70°C and 0 to 95%RH | |
| Enclosure | Material Polycarbonate IP40 | |
| USB Configuration | Internal Micro-B Type | |
| Configuration Software | DigiConfig | |
| Certifications | CE, ANATEL (0172-13-7089) & FCC | |
| Electromagnetic Compatibility | EMC: EN61326-1:2006 CISPR11/EN55011 EN61000-4-2, EN61000-4-3, EN 61000-4-4, EN 61000-4-6, EN61000-4-8 |
|
