Description

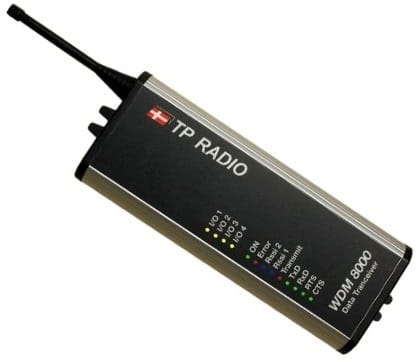

The WDM8000 Wireless data modem is designed for data transmission of RS232 serial data or 4 digital and analogue I/O channels. The WDM8000 is built into a robust IP54 Aluminium housing with DIN rail or surface mounting options and SMA connector for the antenna connection. Programming of parameters, including channel configuration, radio frequencies, power output, etc is done using a standard PC, the dedicated software and built in RS232 interface. Once the simple configuration procedure is completed, the units will be ready for transmitting and receiving data. The RE8WDM12/2F2 features programmable VHF radio frequencies in the range of 136-174MHz and selectable RF power of 0.5W to 5W.
Features
- Easy to setup
- Reliable data communications
- Point to point or Point to multi-point data transmission
- Selectable 500mW, 1, 3 or 5W output Power
- Transparent mode transmission
- Programmable VHF frequency range: 136 to 174MHz
- RS232 interface
- Four level FSK (Frequency Shift Keying) modulation
Specifications
Transceiver
| Frequency VHF: | 136 to 174MHz |
| Channel spacing: | 12.5 / 20 / 25 kHz |
| No. of channels: | 127 Channels |
| Type of emission: | 16K0F1D/10K1F1D |
| Communication mode: | Simplex/Half-Duplex |
| Mode of operation: | Simplex / Semi-duplex |
| TX Output power: | Selectable 500mW, 1W, 3W or 5W / 50 Ohms |
| RX Sensitivity: | -107 dBm 19,200 Vers. 4 Level FSK (BER <10 E-4) |
| Adjacent channel selectivity: | >70dB at 25kHz >60dB at 12.5kHz |
General
| Operating voltage: | 9 to 16vDC |
| Power consumption: | 70mA Standy, 2.0A max (transmit, 5 Watt) |
| Antenna connector: | SMA male, 50 ohm. |
| Temperature range: | -25°C to +55°C |
| Dimension: | H: 179 x W: 69 x D: 37 mm |
| Weight: | 428 g |
| Construction: | Aluminium Enclosure (IP54) |
Data Modem
| Interface: | RS232 with DB25 male connector |
| Data speed of RS interface: | 300 – 115.200 bps (buffer 1Kbit) |
| Data speed of radio interface: | 19,200bps (25kHz channel) 14,400bps (12.5kHz channel) |
| Data formats | Asynchronous Data |
The WDM8000 comply to the 1999/5/EF directive. The concerned standards are EN300 086, 300 113 & 300 279. CE approved according to EC directive 89/336/EEC.
