Description

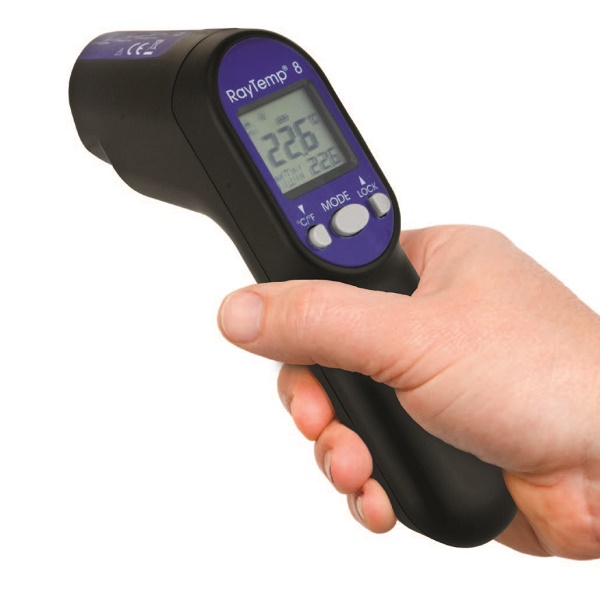

The RayTemp 8 is a compact, lightweight, and easy-to-use non-contact infrared thermometer designed for fast and precise temperature measurement from -60 to 500 °C. Featuring an intuitive three-button keypad for selecting °C/°F, Max/Min, Average, and Differential temperatures, it delivers comprehensive diagnostic data at the pull of a trigger. Its innovative circular laser target indicator automatically adjusts to show the exact measurement zone, while a clear LCD screen and 60-second auto-power-off function ensure efficient operation and maximum battery life.

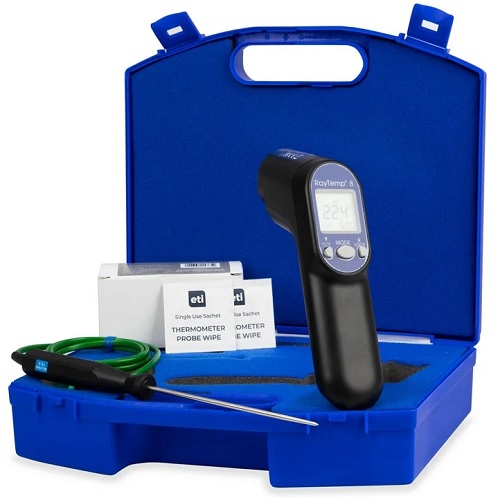

Each RayTemp 8 infrared thermometer kit is supplied in a protective ABS carrying case, with external probe and box of 100 probe wipes.
Specifications
| Range: | Infrared: -60 to +500°C Probe: -64 to +1370°C |
| Resolution: | 0.1°C (-9.9 to +199.9°C), thereafter 1°C |
| Accuracy: | Infrared: ±2°C or 2%. Probe ±1°C or 1% |
| Field of view: | 12:1 optics ratio |
| Emissivity: | 0.95 default, 0.1 to 1.0 adjustable |
| Battery: | 2 x 1.5V AAA Batteries |
| Battery Life: | 180 hours continuous use |
| Display: | Custom LCD |
| Dimensions: | 40 x 66 x 155mm |
| Weight: | 185g |
