Description

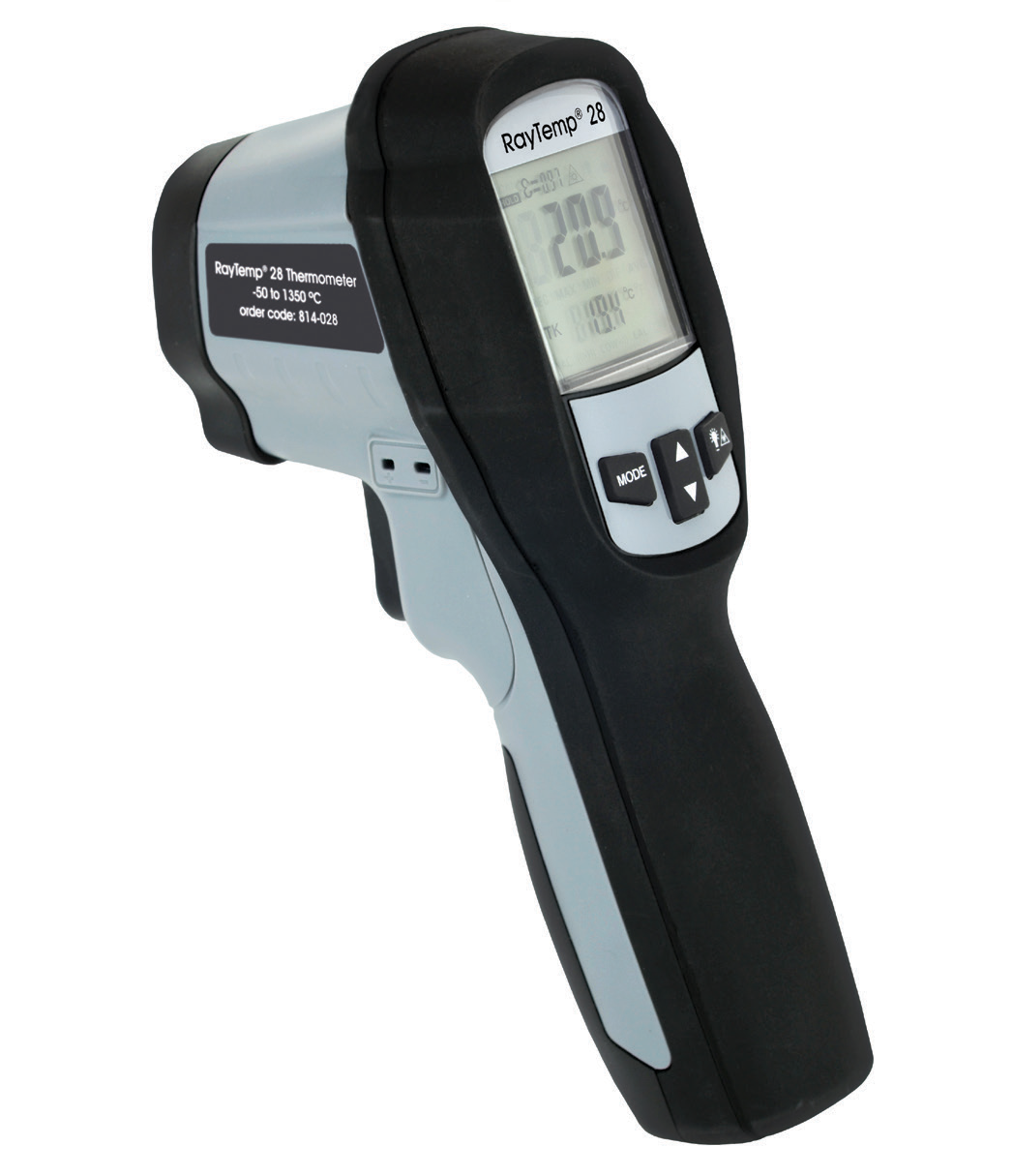

The RayTemp 28 is ideal for measuring the temperature of small targets from distance, or difficult to reach objects, eg ceiling vents or hot pipes in the industry or any other item can be monitored by conventional sensors. The RayTemp 28 infrared thermometer measures the surface temperature over the range of -50 to +1350°C with a 0.1°C (up to +1000°C) or 1°C resolution.
The RayTemp 28 incorporates a clear, easy to read, backlit custom LCD display that indicates temperature and emissivity. The thermometer features a three-button keypad, allowing the user to select the mode required, i.e. max, min, differential and average temperatures, view the max/min high and low alarms and adjust the emissivity from 0.1 to 1.0 in 0.01 increments (default set at 0.95).
The thermometer features a dual dot laser alignment indicating the area of measurement. Each RayTemp 28 infrared thermometer is supplied in a FREE protective ABS carrying case.
Specifications
| Range: | -50 to +1350°C |
| Resolution: | 0.1°C (Up to +1000°C), thereafter 1°C |
| Accuracy: | ±2°C (0-1350°C) Otherwise, ±4°C or ±4% of reading, whichever is greater |
| Field of view: | 30:1 optics ratio |
| Emissivity: | 0.95 default, 0.1 to 1.0 adjustable in 0.01 increments |
| Response Time: | 1 second (90%) |
| Battery: | 9V PP3 Battery |
| Battery Life: | 40 hours continuous use |
| Display: | Custom LCD |
| Dimensions: | 83 x 95 x 193mm |
| Weight: | 275g |
