Description

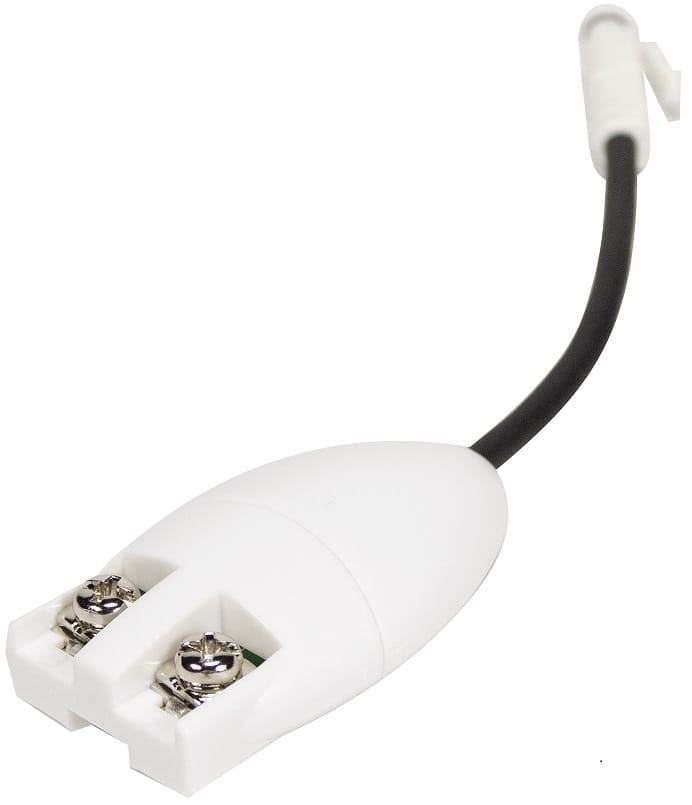

The PTM-3010 is compatible with the RTR505B, RTR505BL and TR-55i-Pt loggers. The PTM-3010 is supplied with a 52mm cable, but can be extended up to 3m using the TR-3C30 extension cable.
Specifications
| Compatible Sensors: | PT100, PT1000 (3-wire or 4-Wire) *1 |
| Sensor Connection: | Screw Clamp Terminal Block: 3-Terminal Square Washer (2-M3.5) |
| Measurement Range: | -199 to 600 °C |
| Measurement Accuracy: (*2) | ±(0.3 + 0.003 × t) °C @ 10 to 40°C ±(0.5 + 0.003 × t) °C @ -40 to 10°C, 40 to 80°C (t = absolute value of measurement in °C) |
| Measurement Resolution: | 0.1°C |
| Operating Environment: | Temperature -40 to 80°C, Humidity 90%RH or less (no condensation) |
*1: In the case of a 4-wire sensor, one wire will be left unused.
*2: For PTM-3010, sensor inaccuracies are not included.
The specifications listed above are subject to change without notice.

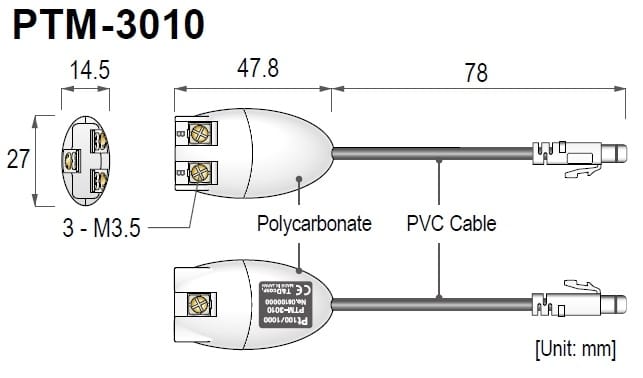

Technical Drawing
