PR 3300 Series Loop-Powered Temperature Converters

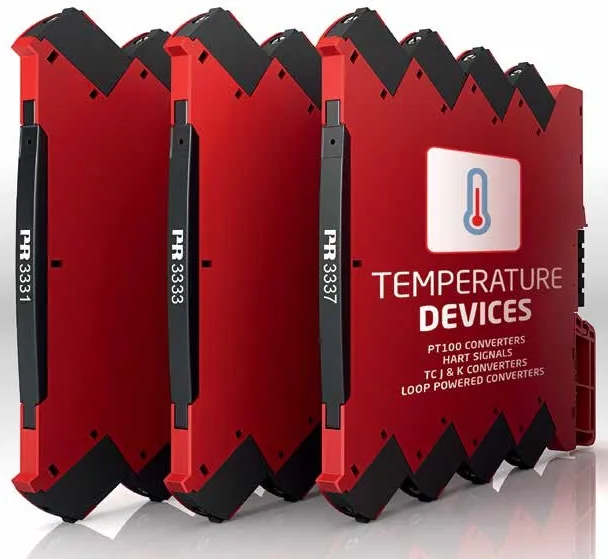

The PR 3300 Series is a range of 6mm loop-powered temperature isolators and signal converters suitable for use with K & J Type thermocouples and PT100 temperature sensors. Programming is achieved via selectable DIP switches allowing changes to 4-20mA output and temperature ranges. The series includes the PR 3337 HART 7 protocol unit that allow for integrating PT100 and thermocouples into a HART system. HART 7 revision protocol allows for extended programming. All units are ATEX approved for Zone 2 environments.

Need help finding the right product?

Description

Features

  • Rational DIP-switch setting
  • Signal conditioning which ensures that no re-calibration is required after DIP-switch programming.
  • 3337 units provide a 4-20mA output with an embedded HART 7 protocol
  • Reliable watchdogs LED indicates an error in the setup, hardware or power supply.
  • Unique protection against wiring errors
  • Effective isolation to EN 61010-1 and EN 61140
  • Easy mounting / dismounting
  • Space-saving design. At only 6 mm wide and can be mounted next to each other, permitting up to 330 channels per metre.
  • Flexible Loop powered units.
  • The devices are vibration-tested via DNV and GL approvals and can be retained on the rail with the 9403 module stop.
  • All units are suitable for ATEX Zone 2 Environments

Specifications

Product Code Description Input Output Program Using
3331 Temperature Converter, loop-powered – Isolated 2-, 3-, or 4-wire PT100,
K & J Type Thermocouples
Isolated, Passive 4-20mA DIP-Switches
3333 PT100 Converter, loop-powered 2-, 3-, or 4-wire PT100 Passive 4-20mA DIP-Switches
3337 HART Temperature Converter, loop-powered – Isolated 2-, 3-, or 4-wire PT100,
K & J Type Thermocouples
Isolated, Passive 4-20mA with HART 7 Protocol DIP-Switches, plus HART 7 revision protocol for extended programming

Power Supply Options


The 3100 Slim Series units can be supplied in various different ways:-

  1. One unit can be connected to suitable 24vDC ±30% power supply and then looped to up to 130 additional units, max 2.5A.
  2. One unit can be connected to a suitable 24vDC ±30% power supply and mounted on to the 9400 Power Rail to distribute power to up to 20 units, max 0.4A
  3. The 3405 Power Connector Unit can be connected to a suitable 24vDC ±30% power supply and then to the 9400 Power Rail to distributor power to up to 100 units, max 2.5A.
  4. The 9410 Power Connector Unit can be connected to a suitable 24vDC ±30% power supply (plus a secondary back-up power supply) and then to the 9400 Power Rail to distributor power to up to 200 units, max 4A.
  5. Loop-powered units are powered directly from the 4-20mA signal.

All devices are ATEX Approved and can safely be used in a safe area, or in ATEX Zone 2 environments.

Units with the suffix -N do not include the power rail connections and can only be powered via the terminals.

Product

Ref

Price

Product Description

3331

£115.00

3331 Slim Series Isolated, Loop-powered, Temperature Converter suitable for conversion of K and J Type Thermocouple or PT100 input to an isolated passive 4-20mA or 20-4mA output signal. Response time: less than 30ms or 300ms, Accuracy better than 0.05% of selected range, or 0.5 C. 6mm Slimline housing. Units are programmable via DIP Switches. Suitable for use in ATEX Zone 2 Environments.

3333

£78.00

3333 Slim Series Loop-powered, PT100 Converter suitable for conversion of 2-, 3- and 4-wire PT100 input to a passive 4-20mA or 20-4mA output signal. Response time: 30ms or 300ms, Accuracy better than 0.1% of selected range, or 0.2 C. 6mm Slimline housing. Units are programmable via DIP Switches. Suitable for use in ATEX Zone 2 Environments.

3337

£170.91

3337 Slim Series Isolated Loop-powered HART Temperature Converter suitable for conversion of K and J Type Thermocouple or PT100 input to an isolated passive 4-20mA or 20-4mA output signal. Response time: 60ms, Accuracy better than 0.05% of selected range, or 0.5 C. 6mm Slimline housing. Units are programmable via DIP Switches and HART 7 Revision protocol. Suitable for use in ATEX Zone 2 Environments.
