Home / Test & Calibration / Handheld Coating, Thickness and Surface Profile Meters / PosiTest DFT Coating Thickness Meter for Metals

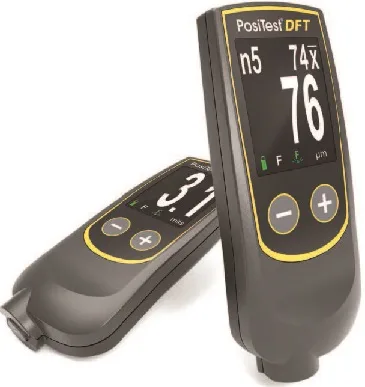

PosiTest DFM Coating Thickness Meter for Metals

PosiTest DFT Coating Thickness Meter for Metals

The PosiTest DFT Series are a range of portable ultrasonic thickness gauges suitable for measuring coating thickness over Stainless Steel, Aluminium, Brass and more using ultrasonic technology. One model is designed for Ferrous metal and a Combo unit for all metals. The meter is ideal for powder coaters, paint applicators, coating inspectors, automotive re-finishers and detailers.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

PosiTest Coating Thickness Meter

  • Description

Description

Features

  • Fast, repeatable measurements – 60+ readings per minute
  • Ready to measure—no adjustment required for most applications
  • Zero or 1 Point Calibration Adjustment for complex applications
  • Onscreen averaging for up to 99 readings
  • Strong, wear-resistant, ruby-tipped probe
  • V-groove in probe for positioning on cylindrical parts
  • High contrast color display
  • Adjustable display brightness for optimal visibility in any environment
  • Auto rotating display with lock to prevent unintended rotations
  • Simple, icon based menu
  • Handy RESET feature when no zero reference is available
  • Mils/microns switchable
  • Built-in wrist strap for added convenience and safety
  • Two year warranty



PosiTest DFT Ferrous

  • Measures non-magnetic coatings on Steel



PosiTest DFT Combo

  • Measures non-magnetic coatings on Steel
  • Measures non conductive coatings on Aluminium, Brass, etc.
  • Automatically recognizes the substrate and takes a measurement.



Specifications

Measurement Range 0 – 40 mils 0-1000 µm
Accuracy ± (0.1 mil + 3% of reading) ± (2 microns + 3% of reading)



All meters are supplied complete with wrist strap, precision plastic shims, hard shell storage case, 2 AAA alkaline batteries, instructions, Long Form Certificate of Calibration traceable to PTB, two year warranty.



Product

Ref

Price

Product Description

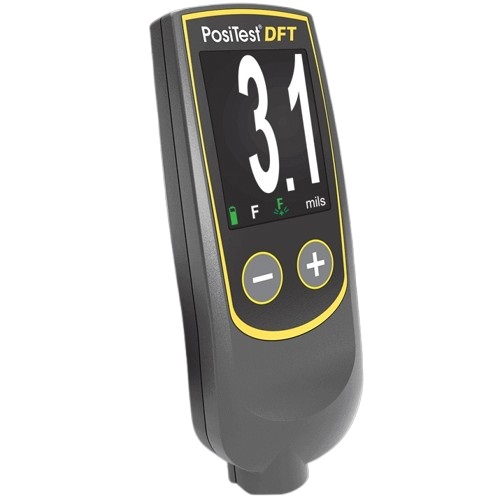

DFTF-C

£468.00

PosiTest DFT Ferrous Coating Thickness Gage for non-magnetic coatings on steel. Measurement range: 0-40 mils (accuracy ±0.1mils), 0-1000µm (accuracy ±2 µm). 60+ readings per minute with onscreen averaging for up to 99 readings. Strong, wear-resistant, ruby-tipped probe. Dimensions: 108 x 43 x 20mm. DFTF-C comes complete with wrist strap, precision plastic shims, hard shell storage case, 2 AAA alkaline batteries, instructions, Long Form Certificate of Calibration traceable to PTB, two year warranty.
MORE INFO
Add to basket

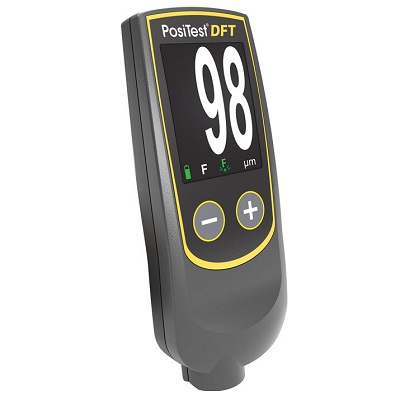

DFTC-C

£690.00

PosiTector DFT Combo Coating Thickness Gage for non-magnetic coatings on steel and non-conductive coatings on Aluminium, Brass, etc. Measurement range: 0-40 mils (accuracy ±0.1mils), 0-1000µm (accuracy ±2 µm). 60+ readings per minute with onscreen averaging for up to 99 readings. Strong, wear-resistant, ruby-tipped probe. Dimensions: 108 x 43 x 20mm. DFTC-C comes complete with wrist strap, precision plastic shims, hard shell storage case, 2 AAA alkaline batteries, instructions, Long Form Certificate of Calibration traceable to PTB, two year warranty.
MORE INFO
Add to basket

POUCH-DFT

£15.00

Leather Pouch With Belt Clip for PosiTector DFT Coating Meter
MORE INFO
Add to basket
