Description
Features

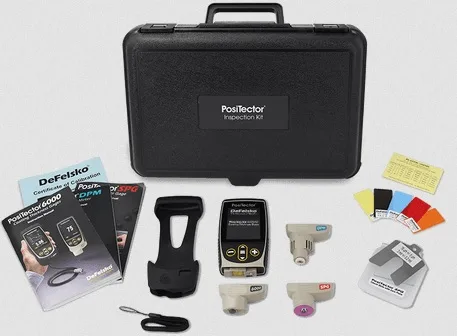

- Each Inspection Kit Includes
- Positector Body – Advanced or Standard
- Positector DPM Environmental Probe
- Positector SPG Surface Profile Probe
- Positector 6000 Coating Thickness Probe – Up to 12 Options
- Large, easy-to-read, graphics LCD with multi-lingual support
- One-Handed menu navigation
- Shock absorbing protective rubber holster with belt clip
- Universal display module accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes
- Supplied with NIST traceable calibration certificate
- Two year warranty on body and probe.
Coating Thickness – 6000 Probe
Coating thickness, paint thickness, or dry film thickness (DFT) is an important variable that plays a role in product quality, process control, and cost control. Measurement of film thickness can be accomplished by selecting the best mil gage for the particular application.
Regular film thickness measurement helps control material costs, manage application efficiency, maintain finish quality, and ensure compliance with contract specifications. Paint manufacturers recommend target ranges to achieve optimum performance characteristics and clients expect these parameters to be met
6000 Probes use magnetic and eddy current principles to measure paint thickness on both ferrous and non-ferrous metals

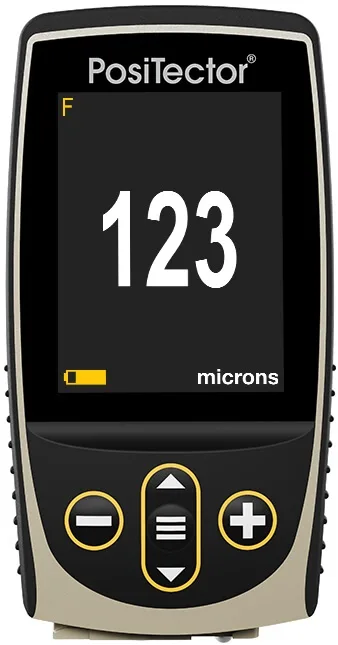

Standard Model
- Storage of 1,000 datasets Stored readings can be viewed or downloaded.

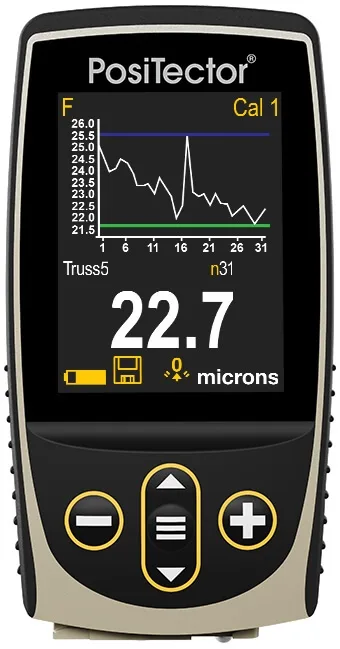

Advanced Model
- Storage of 250,000 datasets in up to 1,000 batches
- Prompted Batch Mode Create Pre-defined batches
- 3 Scan Modes
- Normal – Continuous readings with lifting probe
- Statistics – Continuous readings with average, standard deviation, min/max thickness and number of readings
- Limited Count Average – Continuous readings up to a user-specified count
- Live graphing of measurement data
- WiFi allows synchronisation with PosiSoft.net for software updates
- Bluetooth 4.0 Technology. Can transfer data to Mobile device or Bluetooth Printer.
- Can connect to Bluetooth keyboards and barcode scanners
Environmental Monitoring – DPM Probe
The environmental conditions during pre-treatment and application of a coating system are major factors affecting the long-term performance of coatings on steel structures. Dew Point Meters can be used to monitor environmental conditions before, during, and after painting. Ideal for surface preparation as required by ISO 8502-4, an electronic Dew Point Meter determines the likelihood of dew forming on structures which are being painted.
DPM Probe will monitoring the following parameters
- Relative Humidity
- Air Temperature
- Surface Temperature
- Dew Point Temperature
- Wet Bulb Temperature (Advanced Model Only)
Standard Model
- Storage of 2,500 datasets Stored readings can be viewed or downloaded.
- Auto Log Mode runs unattended on batteries for up to 60 hours or continuously via USB
Advanced Model
- Storage of 250,000 datasets in up to 1,000 batches.
- Auto Log Mode runs unattended on batteries for up to 8 months or continuously via USB
- Readings can be uploaded to PosiSoft.net or FTP Server using WiFi.
- Automatically grouping readings into Daily, Weekly or Monthly Readings
- Visible and Audible warnings, plus email alerts when connected to WiFi
- Bluetooth 4.0 Technology. Can transfer data to Mobile device or Bluetooth Printer.
- Trend charts graph readings in real-time
Surface Profile – SPG Probe
Steel is often abrasive-blast cleaned or otherwise roughened prior to painting. The peak-to-valley height of the resultant “surface profile” is a critical and determining factor in the performance of applied paint and other protective coatings. A surface profile height that is too low may reduce coating bond strength (adhesion). Too high and the peaks may receive insufficient coverage leading to premature rusting, and often require additional paint (and labour costs to apply it) to cover the anchor profile.
Emerging research over the past 15 years has shown surface profile height is not the only important parameter. Peak density (also known as peak count), the number of peaks in the surface profile per unit area, has been shown to be a strong determinant of coating adhesion and resistance to corrosion. In fact, studies have found that peak density may be a better predictor of coating performance than peak-to-valley height.
Surface profile height can also be relevant for other industries, as a way to quantify the profile height of non-skid surfaces, and to evaluate the Concrete Surface Profile (CSP) prior to applying coatings on concrete.
SPG Probes use a digital depth micrometer fitted with a fine pointed probe to measure and record peak-to-valley surface profile heights in preparation for the application of coatings.
Standard Model
- Storage of 1,000 datasets Stored readings can be viewed or downloaded.
Advanced Model
- Storage of 250,000 datasets in up to 1,000 batches.
- SmartBatch allows entry of user defined parameters and criteria
- Live graphing of measurement data
- WiFi allows synchronisation with PosiSoft.net for software updates
- Bluetooth 4.0 Technology. Can transfer data to Mobile device or Bluetooth Printer.
- Trend charts graph readings in real-time
Ordering Guide
|
||||||||||||||||||||||||||||||||||

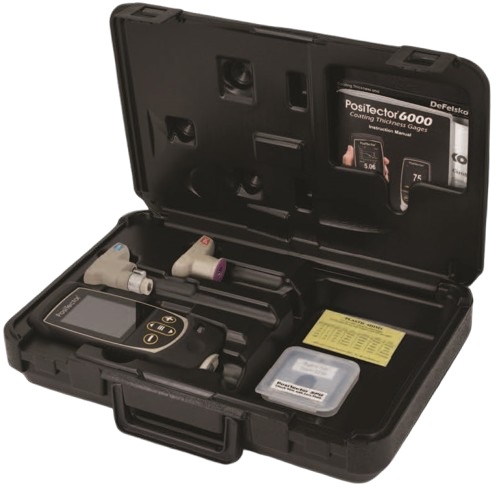

Each Inspection Kit contains: PosiTector Gage Body (Standard or Advanced), PosiTector 6000 Coating Thickness Probe (select from a variety of measurement ranges and probe styles), PosiTector DPM Environmental Probe, and PosiTector SPG Surface Profile Probe. Select from up to 12 pre-configured kits
