Description

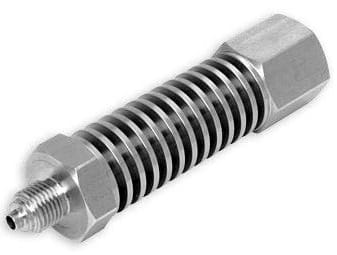

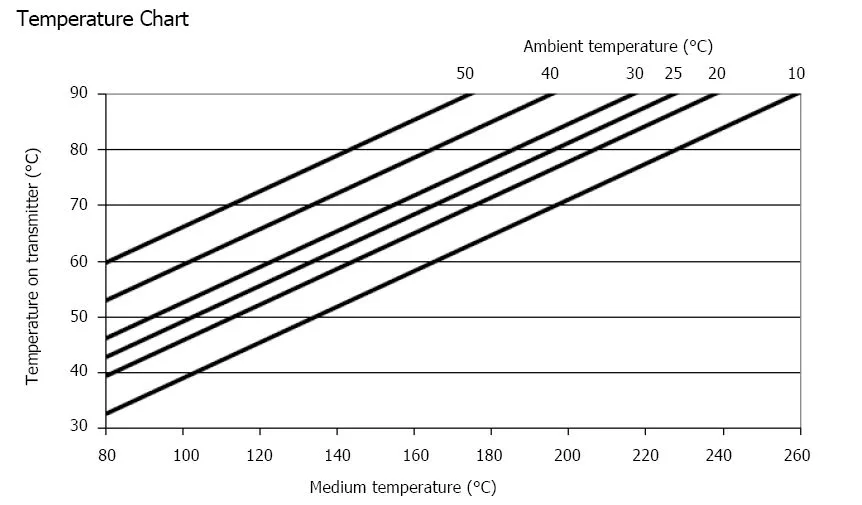

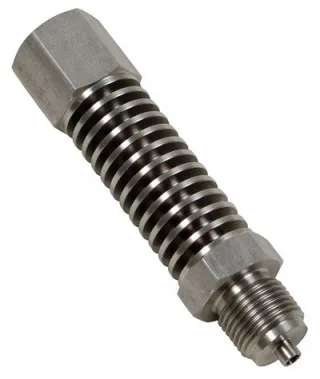

The PL-HS Static Pressure Sensor Heat Sink enables standard pressure sensors to be used on systems where the medium has a higher temperature than the sensor allows. The cooling fins effectively transfers the heat, depending on the ambient temperature. Systems with medium temperatures of up to 260°C can be monitored without harming the sensor..Static pressure heat sink with ½” BSP male and ½” BSP female threads. Stainless Steel construction with a 4mm diameter duct. Dimensions 123 x 30mm. Suitable for use up to 260°C.

Features

• Effective solution for high media temperatures
• Easy mounting

Specification

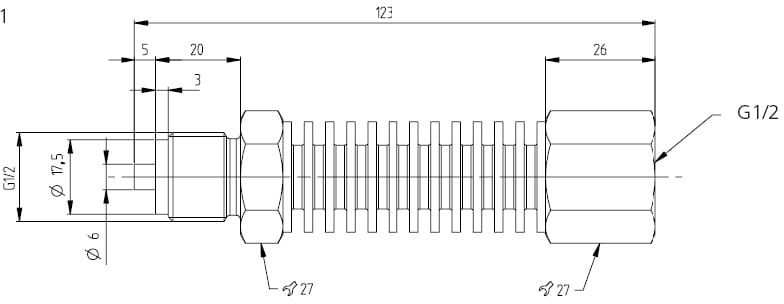

Technical Drawing
