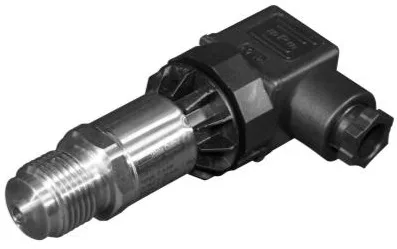

The PL-525 relative pressure transmitter is a compact. robust pressure transmitter with a very high measurement accuracy over a low relative pressure range. The PL-525 uses a well proven ceramic sensor cell that has excellent thermal characteristics and is ideal for measuring low pressure liquids, steam and non-aggressive gases. Pressure ranges are available from 0 to 100mBar up to 0 to 600mBar at an accuracy of ±0.35% of the full scale with a 4-20mA or 0-10V output.
The PL-525 replaced the previous PL-691 low pressure transmitter.
Features
Specifications
| Pressure Ranges: | 0 to 100mBar 0 to 200mBar 0 to 300mBar 0 to 600mBar |
| Supply Voltage:
|
10 to 30vDC (4-20mA output) 12 to 33vDC (0-10V output) |
| Outputs: | 4-20mA or 0-10V |
| Response Time: | <150ms |
For use with steam, or other media with a temperature above 80°C, a PL-HS Static pressure heat sink may be used to reduce the media temperature.
Standard items are supplied with ½” BSP thread and DIN socket. Other threads and cabled units are available on request with a 3-4 weeks lead time.
PL-525-0.1
£167.59
PL-525-0.2
£167.59
PL-525-0.3
£167.59
PL-525-0.6
£167.59
PL-525-0.1-V
£167.59
