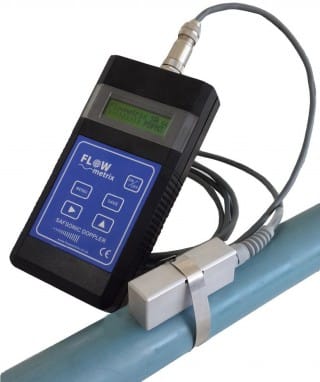

The PDFM3-L is a handheld non-invasive microprocessor based meter for measuring the flow rate and total volume of liquids flowing through process and effluent pipelines. It is suitable for a wide range of liquids, including aerated water, liquids containing suspended solids, slurries and sludges. The PDFM3-L requires fluids with a minimum concentration of 100 ppm of solids or bubbles having minimum size of 100 microns. The unit is fitted with a built in pulse logger and is supplied with a carry case, charger, batteries and all the necessary accessories.
The flowmeter utilises a single clampon sensor and the non-intrusive Doppler principle to measure the mean velocity and is particularly useful as a temporary flow indicator or as a working tool to establish and verify flow conditions in field or plant installations.
PDFM3
Applications
Specifications:
Velocity Range: 0.3 to 10.0 m/s
Accuracy: better than 2% of FS
Repeatability: 1%
Cable length: 2-metre length
Temperature: Sensor -20 to 90°C, Electronics -10 to 50°C
Electronics: Black Moulded ABS Enclosure 196 x 100 x 40mm
Carry case: Included
Transducer: IP68 St/Steel epoxy-faced 81 x 23 x 23mm
Power: 4 x AA rechargeable cells Incl.
Battery Charger: 230Vac 50/60Hz
Indication: 2 – Line 16 Character Backlit LCD
Weight: 0.85kg
PDFM3-L
£3,056.03
