Description

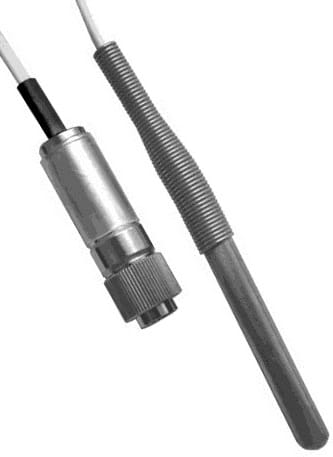

The PB-7005-3M is a specialist stainless steel probe with a 3m flat cable which can monitor very low temperatures from -200 to +150°C. It is typically used to monitor temperatures of products in fridges and freezers. The flat, flexible cable is designed to pass through a fridge or freezer door seal without leaving a gap that a larger cable might leave. This waterproof (IP67) probe uses a high specification resin and a unique manufacturing technique that allows both the sheath and the cables to be exposed to their full temperature range. The 3m cable provides enough cable to place the probe into a freezer and then reach the desired location inside.

Physical Specifications		Sensor Specifications
IP Rating:	IP67 (Waterproof)	Sensor Type:	PT1000 (Class B)
Weight:	53g (1.5m Cable Version)	Measuring Range:	-200 to 150°C (–328 to +302°F)
Response Time Moving Air:	Better than 5 mins (to 90% FSD)	Sensor Accuracy:
Probe Material:	316 Stainless steel
Probe Temperature Rating:	-200 to +150°C (-328 to +302°F)
Cable Material:	Hyflon MFA. Do not flex below -70°C
Cable Temperature Rating:	-200 to +150°C (-328 to +302°F)
Ferrite Bead Temperature Rating:	3 W 800
Connector Material:	Nickel Plated Brass/Zinc Alloy
Bead/Connector Temperature Rating:	-25 to 85°C (-13 to 185°F)

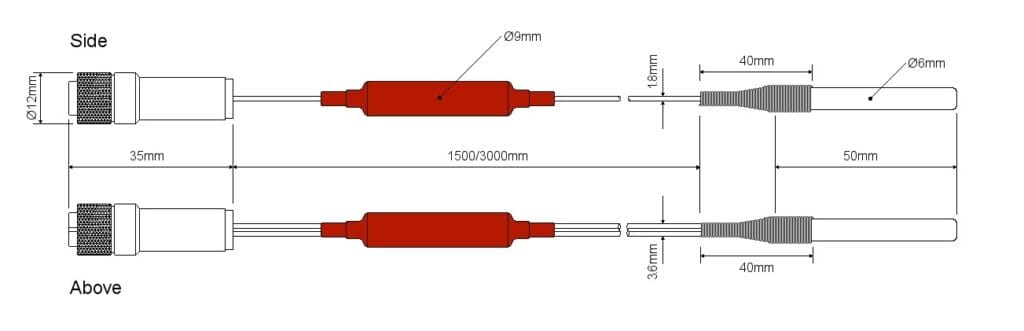

PB-7005 Dimensional Drawing

This probe is suitable for use with the following products:
